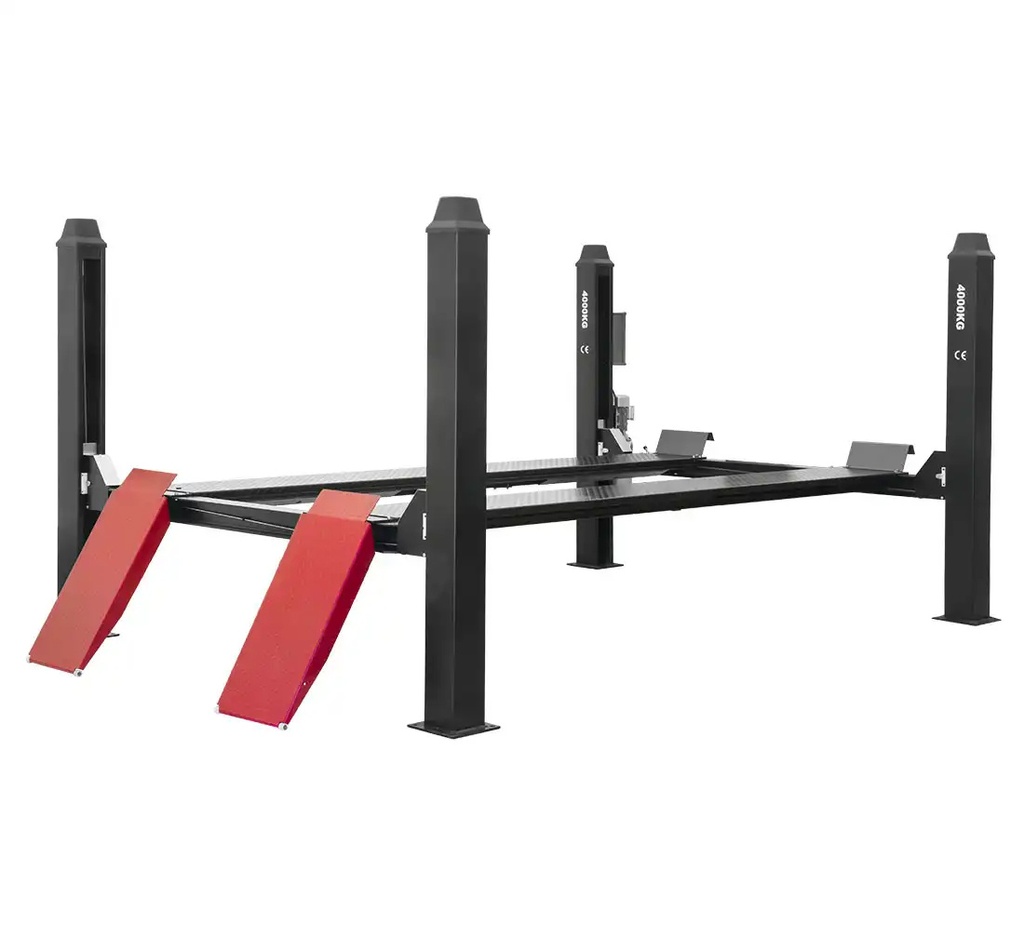

Pusiau automatinis keturkolonis keltuvas 4T REDATS L-400 (15-01-10, REDATS)

REDATS L-400 - essential information to tell your customers

capacity: 4 tons
Type: semi-automatic
Lifting height: 250 - 1750 mm
Time to full rise: ca. 50 seconds
Time to full lowering: ca. 50 seconds
Runway width: 530 mm
Runway height (resting position): 200 mm
Ramp length (without runways): 4250 mm
Perfectly safe to use
This lift is equipped with a range of safety features every car pro would enjoy:

rope damage safety feature
security system based on ratchets
Hydraulic overflow valve
safe voltage adjustment 24V
HAT CARS IS IT FOR?
Check the infographic below.

Application
This four-post lift can be used for diagnosing the car’s underbody, as well as a range of other maintenance jobs. Thanks to long ramps (length 4250 mm), working with any passenger car or light commercial van is much easier. The height is 1700 mm.

Ramp position setting
Both ramps can be set between 800-950 mm. You can easily set it according to your needs - no matter what the car’s wheelbase is. Other than that, there are special safety locks that prevent the car from rolling down the lift.

Reliablity for years
The lift is very firm and stable. The runways are made of corrugated steel, so they are resistant to any damage or cracks, even after years of use. Also, corrugated steel is an anti-skid material, which means better safety during work.

Safe operation
There are special safety locks that activate while uplifting the car. Thanks to that, there is no risk that the lift suddenly drops. And there is also the overflow hydraulic valve that activates whenever it reaches the maximal pressure.
