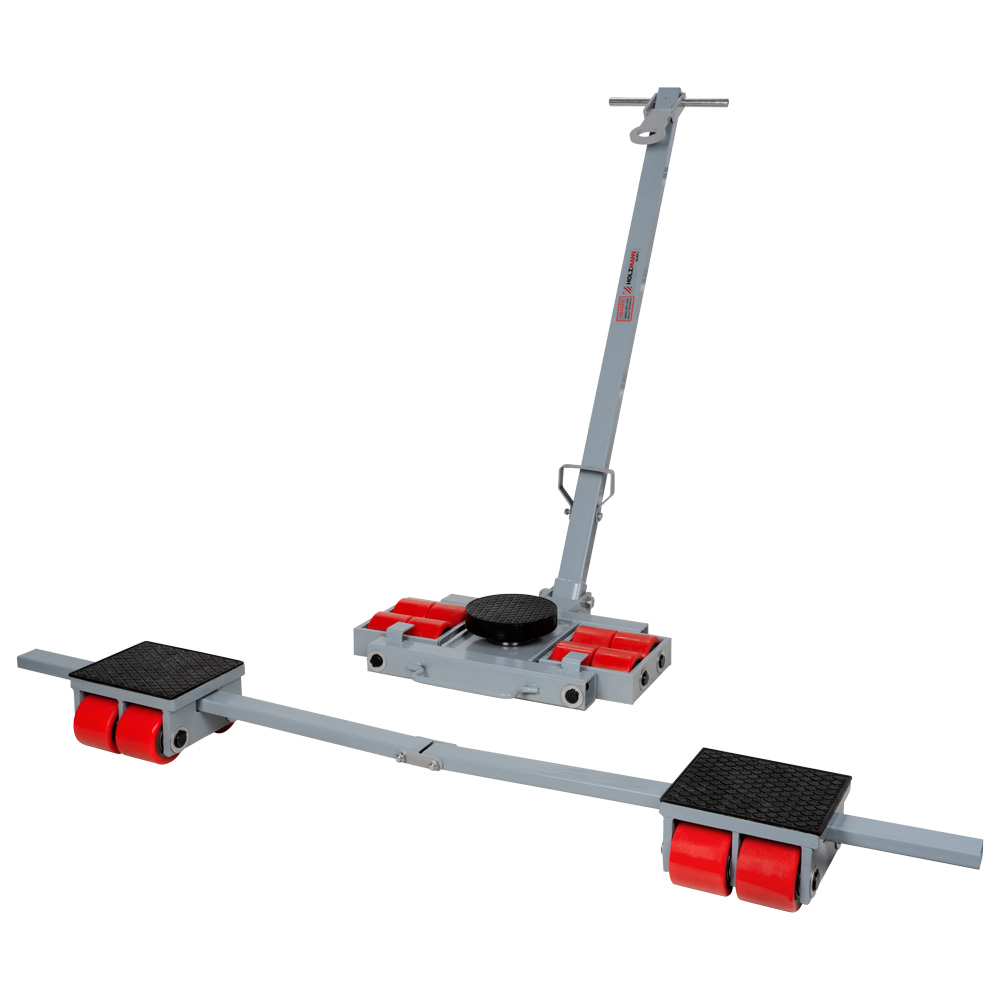

CARGO PALLET TROLLEY SLRF8

HOLZMANN SLRF8 cargo pallet trolley Transport system for machines and heavy loads The HOLZMANN SLRF8 cargo pallet trolley is the professional solution for the safe transport of machines and the movement of heavy loads in workshops, industry, warehouses and assembly areas. Ideally suited as a transport trolley for machines, safes, steel structures or other heavy equipment. Thanks to its modular system with adjustable connecting rod, the SLRF8 offers maximum flexibility. The two rear heavy-duty trolleys with supports are connected via a sturdy connecting rod. The distance between them can be adjusted, allowing the system to be optimally adapted to different machine widths and load centres. The steering trolley with turntable enables controlled and precise manoeuvrability.

• max. load:
• trolley with turntable: 8 t
• trolley with support surface: 8 t (4+4 t)
• length of steering rod: 1100 mm
• length of connecting rod: 400–1300 mm
• turntable: Ø160 mm
• chassis support surface: 200 x 160 mm (each)
• number of wheels:
  • chassis with turntable: 8
  • chassis with support surface: 4
