5 operation combined machine K5310VPSMW2_400V

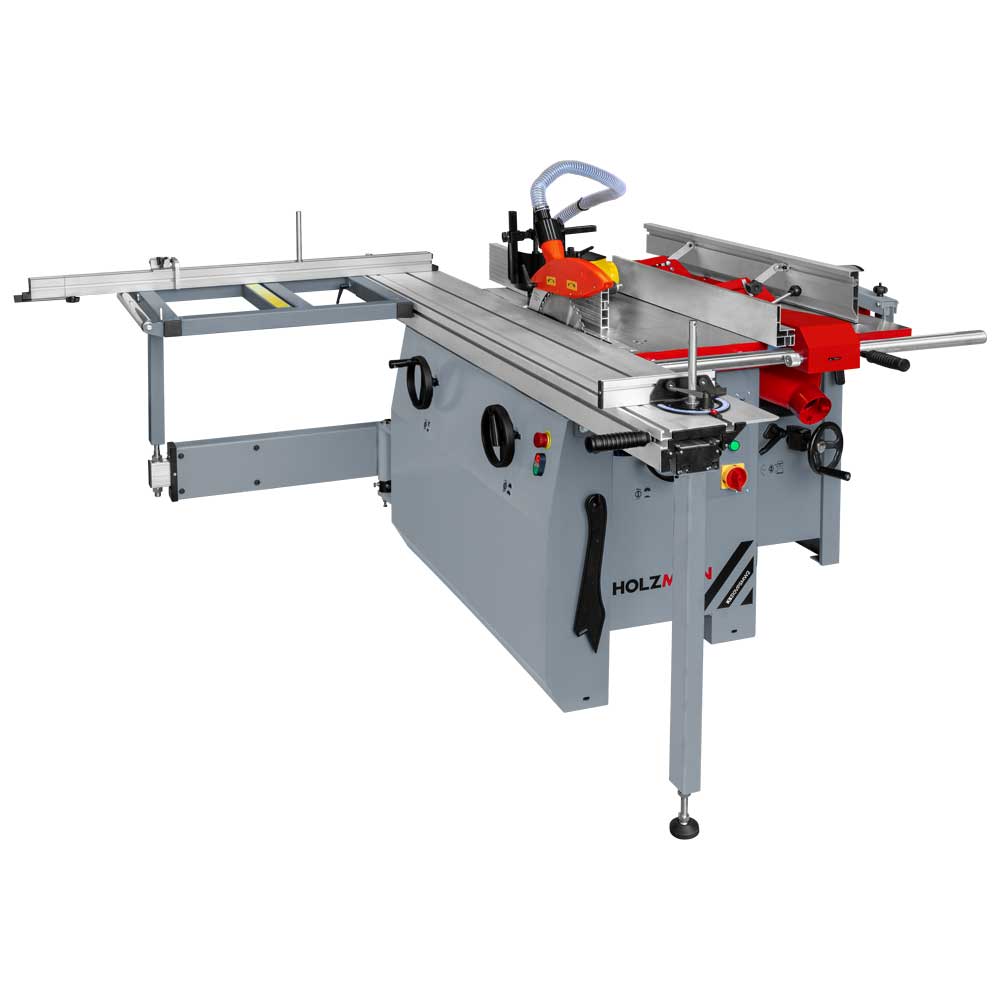

HOLZMANN K5310VPSMW2_400V – Combination woodworking machine with 300 mm planing width and scoring saw blade and spiral cutter head The HOLZMANN K5310VPSMW2_400V is a combination woodworking machine designed for various woodworking applications. Multiple machining functions are combined in one machine, allowing use in workshops with limited space. The machine combines the following functions: Circular saw with scoring saw blade Spindle moulder for profile and edge machining Planer with spiral cutterhead Thicknesser with 300 mm planing width Optional mortising unit The sliding table supports the machining of larger workpieces. The machine is equipped with three separately motors for the individual machining units. The optional HOB310ECOLL slot mortising unit can be added to extend the range of applications.

• saw blade can be swiveled up to 45° using a hand wheel
• spiral cutter shaft for planing and thicknessing with 2 grooves and 24 cutting plates
• sliding table with extension table and crosscut fence (1225-2320 mm)
• function selection via rotary switch
• spindle shaper motor power 3.0 kW
• circular saw motor power 3.0 kW
• planer-thickness planer motor power 2.2 kW
• thickness planer with activating/deactivation feed-lever: feed-speed max. 5,5 m/min

Included in delivery: TCT saw blade (315 x 30 x 3.0/2.2 mm), dust collector hose (saw blade dust hood to connection piece), 30 x cutter inserts pre-assembled (15x15x2.5 mm)

optional accessories: mortising unit HOB310ECOLL
