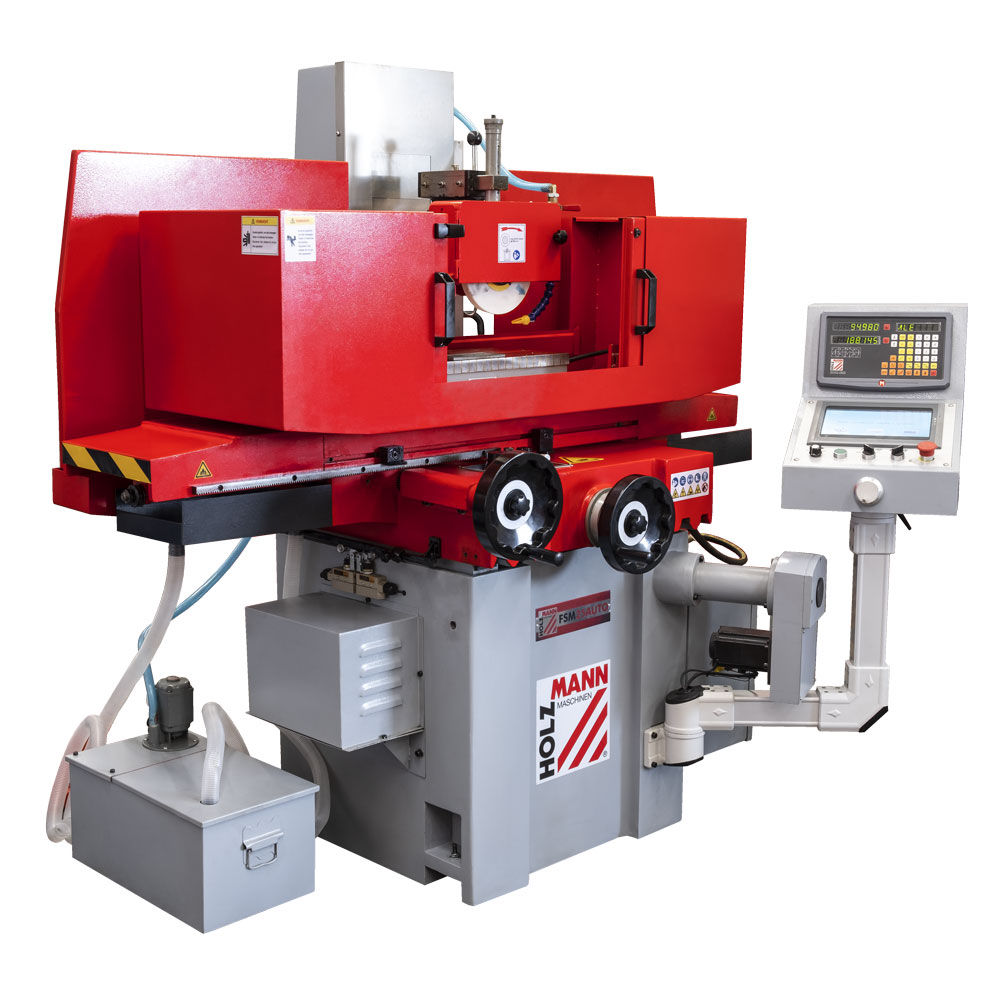

surface grinder FSM25AUTO_400V

• Surface grinding machine with automatic cycle function (pre-grinding, fine grinding, spark-out)
• Machine base made of solid cast iron for maximum rigidity and stability
• electro-magnetic clamping chuck (500 x 250mm) for fixing workpieces included (magnetisation / demagnetisation via switch on control panel)
• Table slideway as V-flat in longitudinal direction and double-V in transverse direction
• Equipped with coolant supply equipment (pump, tank, tubing)
• Coolant pump: 40 W 12l/min
• device for dressing directly on the machine for resharpening of the grinding wheel included (incl. dressing diamond)
• Central lubrication of all guides (automatic with time function)
• Grinding of workpiece up to 500 x 254 x 275 mm possible
• 2-axis position display (grinding stone feed and table position)
• hydraulic longitudinal feed adjustable via lever and change-over positions adjustable via limit switch (electric motor for pump 1.5kW)
• manual longitudinal adjustment possible via separate spring-loaded handwheel
• separate feed motor for transverse movement from the table (step width adjustable by means of potentiometer on control panel (0.1-11.2mm/rev) as well as change-over position adjustable by means of limit switch also in transverse direction)
• Manual transverse adjustment possible via handwheel (graduation 0.02mm/rev)
• Height adjustment by means of servo motor 750W (manual feed by means of handwheel on control panel with 3 steps as well as automatic in automatic cycle)
• max. table load 180kg

Included in delivery: grinding wheel (Ø200 x 20 mm, WA / 46), coolant pump + tank, devices for grinding wheel balancing (shaft, stand), tool, 2-axis DRO, LED-light; hydraulic unit with pump, motor and cooler
