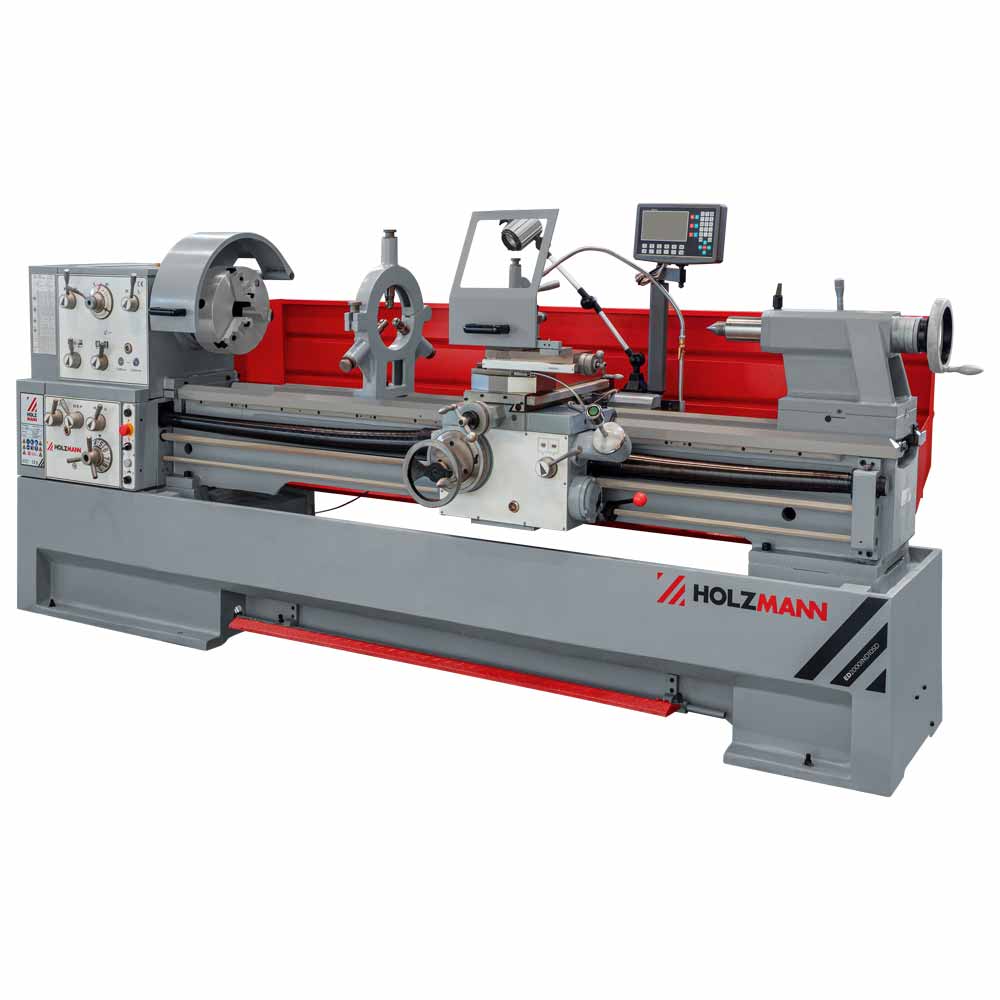

metal lathe ED2000IND105D_400V

xl article l The HOLZMANN ED2000IND105 metal lathe with 2000 mm center distance, 105 mm spindle bore diameter, coolant supply, digital read out (3-axes), and rapid movement (axes) in industrial design for use in your company-workshop or for education or schools.

• heavy and vibration absorbing one-piece cast iron machine bed assuring superior accuracy
• very wide bedways with induction-hardened and precision ground prismatic guideways
• handy and easy operation via clearly designed control panel
• removable bridge enables the machining of large diameters in the gap bed section
• all guides conveniently adjustable via V-ledges
• CAMLOCK D8
• tailstock can be offset for turning tapers
• hardened and ground gears and spindles running in permanent oil bath lubrication
• huge spindle bore (Ø =105 mm)
• electromagnetic foot brake ensures maximal working safety and cuts down nonproductive time dramatically
• broad range of metric and imperial thread pitches selectable
• includes as standard halogen lamp and coolant device
• digital read out unit (3-axis) for easy operation
• rapid movement device: 300W motor

Included in delivery: coolant systeme, work lamp, 3-jaw chuck Ø315mm, 4-jaw chuck Ø320mm, face plate Ø 450mm, reduction sleeve, change gears, follow rest, steady rest, 4 way tool post, 2x dead centers, splash guard, digital position display (3-axis)
Operating fluids:

• lubricants (viscosity 220, (ISO 12925-1 CKD, DIN51517 Part 3 CLP, US Steel 224, AGMA 9005-E02)
  • Headstock oil quantity 12 l
    • Gearbox lock case oil quantity 1 l
  • Feed gear oil quantity 4.5 l
• Coolant (e.g.: HOLZMANN KSM5l)
  • Coolant capacity max. 33l
