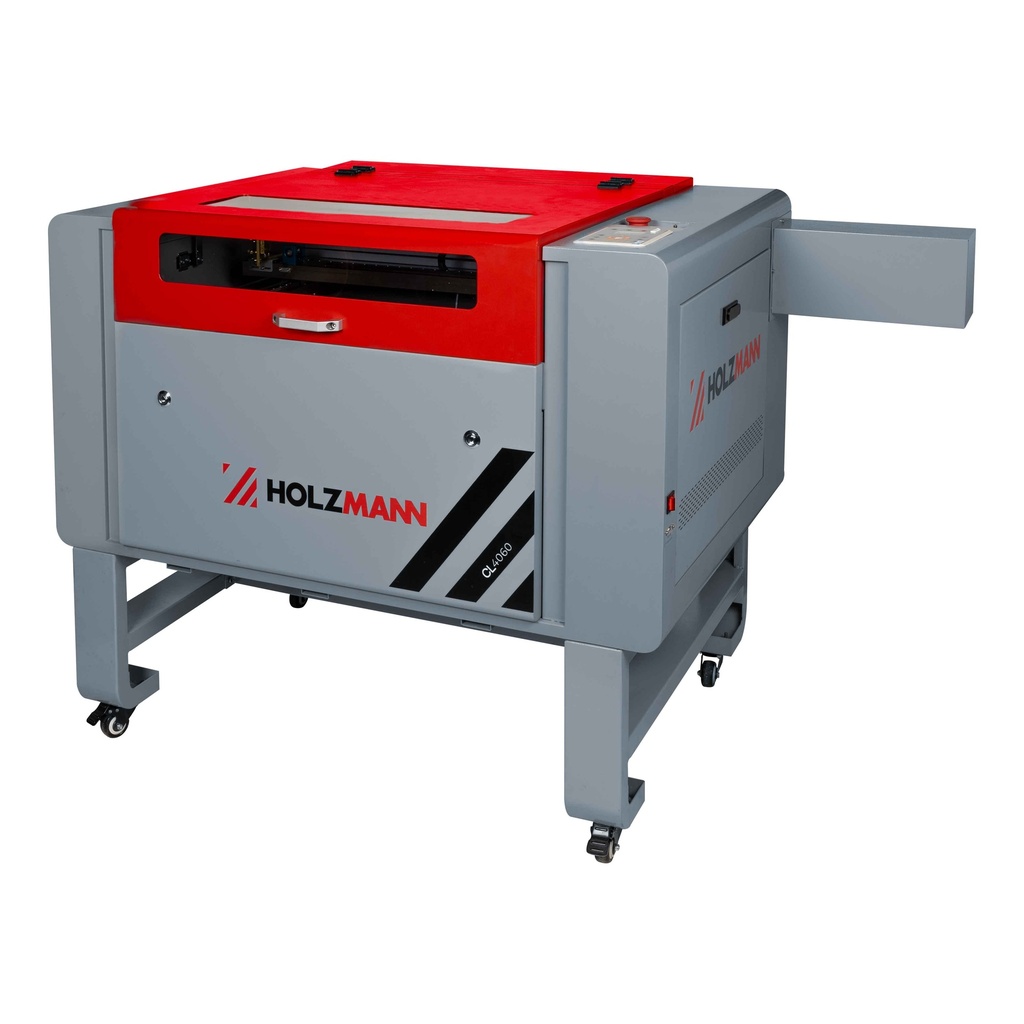

CNC laser engraver cutter CL4060_230V

HOLZMANN CNC laser engraving cutter CL4060 - precise & versatile The HOLZMANN CL4060 is a powerful CO₂ laser for engraving and cutting non-metallic materials such as wood, leather, acrylic, glass and plastic. With a working area of 400 x 600 mm and a laser power of up to 80 watts, the machine offers high precision cutting results and perfect engravings. Thanks to the compatible software (e.g. RDWorks), you can easily create your design on the computer, connect it to the machine, transfer it and cut or engrave it precisely. Ideal for professional applications in advertising technology, modelling, DIY and industry.

• C02 laser
  • RECI® W2-LaserModule
  • 80 W
  • Laser tube 1250 mm / Ø 80mm
  • Wavelength: 10600 nm
  • Lens: Ø18mm; F50.8
• air compressor power: 5W
• fan power: 38W
• travelling distance z-direction (up/down): 200mm
• processing area: 600 x 400 mm
• max. engraving speed: 500 mm/s
• max. cutting speed: 200 mm/s
• cutting thickness: 0 - 15 mm
• accuracies:
  • Positioning accuracy: <0.01 mm
  • min character size / letter size: 2x2 / 1x1 mm
  • Resolution: 0.0125 mm
• incl. large water cooler: 1400 W cooling capacity / 48 W pump capacity / 650 W compressor capacity, tank capacity 6 litres
• RDWorks operating software (self-installation)
• Controller Ruida RDC5121
