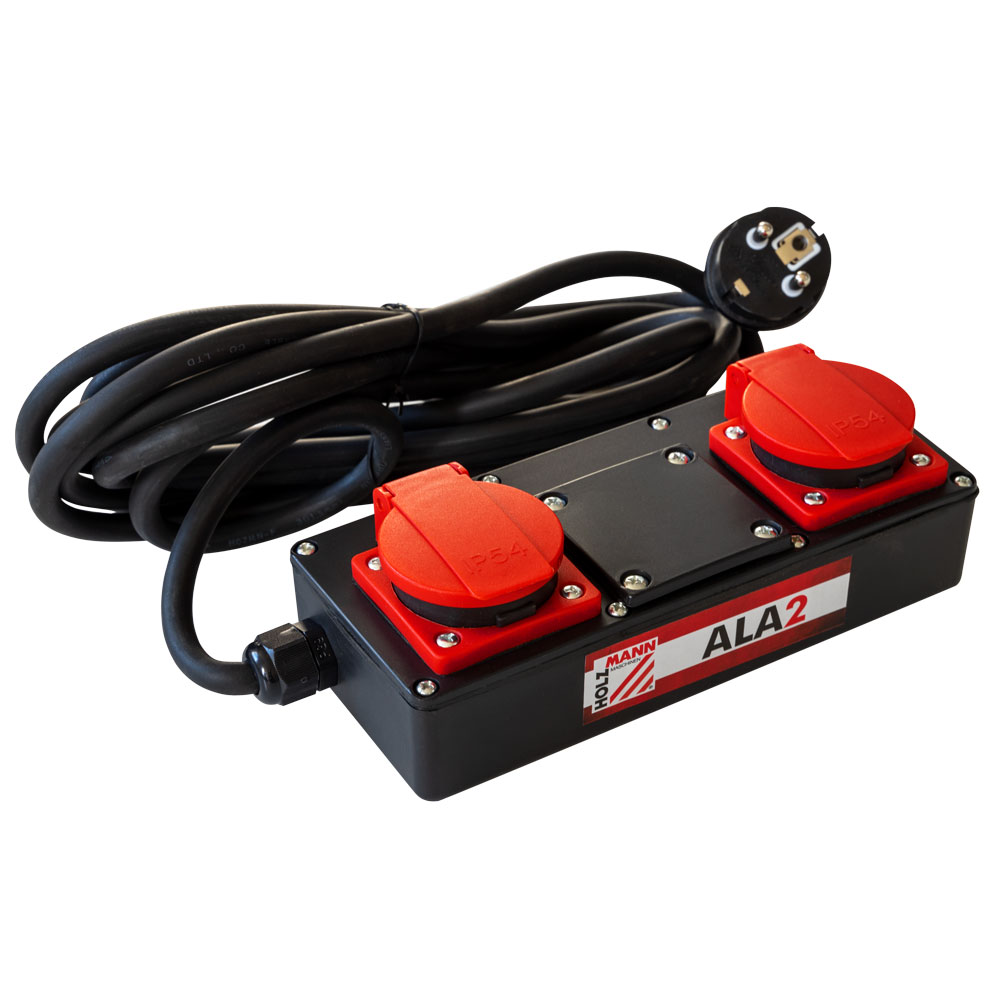

compact distribution box ALA2_230V

With the HOLZMANN compact distribution box you can switch on and off automatically after activating the woodworking machine the dust collector (both on 230 V basis). Connect the woodworking machine and the dust collector unit to the distrubution boxand you are ready to go. (The requirements of the dust collector unit should be checked beforehand to ensure proper operation).

• one working machine can be connected to distributor box
• after switching on the working machine (master) the second connected machine e.g. dust collector (slave) is released after 2-4 seconds
• after switching off the working machine, the second machine is also switched off after 3-4 seconds.
• compact distribution box for 2 pieces 230V machines
• max. rated power 3680W (16A)
• power cable H07RN-F 3G1.5mm² with 4m length
• master-slave socket with time delay of 2-4 seconds
