YOULI · Kods YLCUT40

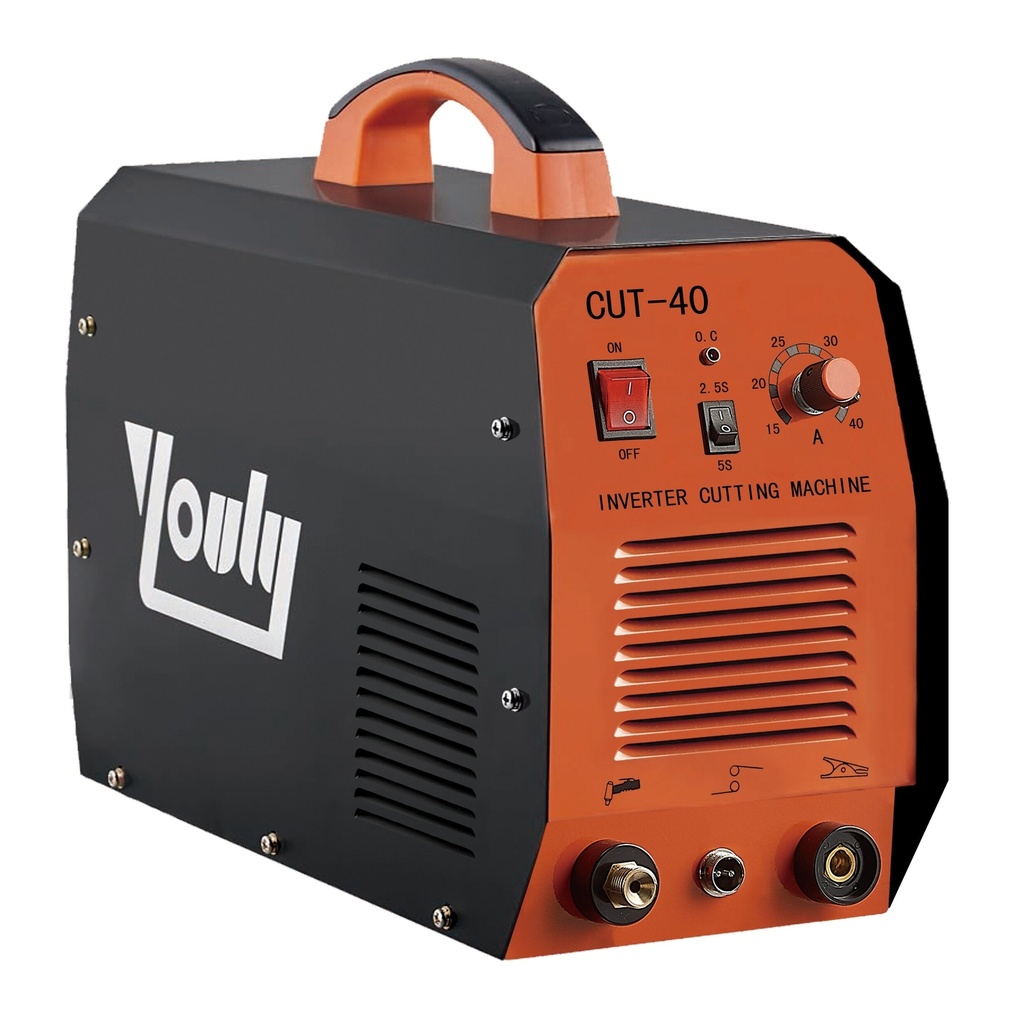

⬡ Plazmas griezējs (MOSFET) 40A, 15mm, 230V (YLCUT40, YOULI)
| Ražotājs: YOULI |
Apraksts
In the set included: power supply cable 1.6 m, cutting torch (touch type) with 4 m cable, hose, ground wire 1.6 m and pressure reducer
Supply voltage 230 V, 50 Hz
Current range 15 - 40 A
Cutting thickness 1-15 mm
No-load voltage 230 V
Rated output voltage 96 V
Duty cycle 60 %
Power 6.6 kVA (5.28 kW)
Pilot arc model HF oscillating
Burner inter diameter 1.0 mm
Working pressure 4.5 bar
Average air consumption 100 L/min
Protection grade IP21S
Electrical insulation class F
Dimensions 410 x 150 x 300 mm
Weight 9 kg
CE conformity
