Kods VSG.J40PX.902191

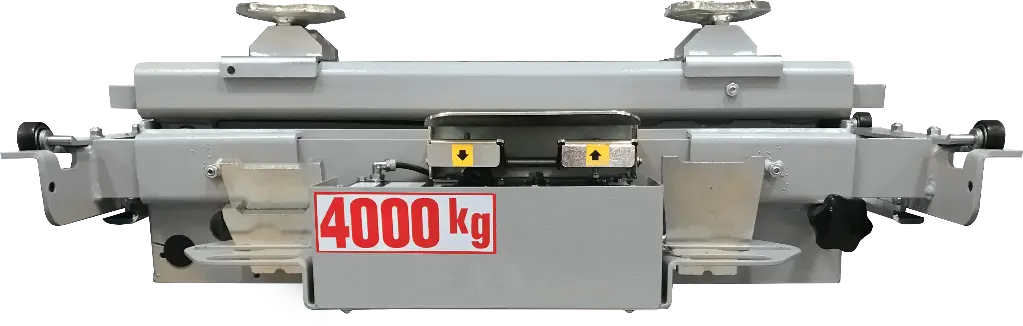

Ass pacēlājs 4T, gaisa-hidrauliskais J40PXL Ravaglioli (VSG.J40PX.902191, RAV)
Apraksts
Technical specifications:
Lifting capacity: 4 T
Lifting width: 794-1655 mm
Lifting height: 345 mm
Lift base width: 852-1191 mm
Working air supply: 6-10 bar
Weight: 127 kg
Sliding on plastic wheels
Pneumatic hydraulic pump
Automatic locking, pneumatic release mechanical locking device
Suitable for Ravaglioli manufactured 4-column lifts with open front and scissor lifts with lifting capacity over 4 T.
