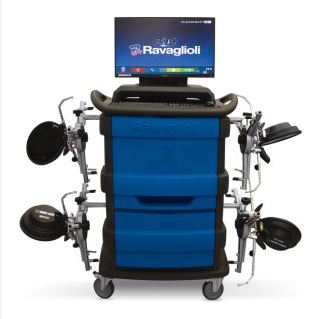

3D riteņu regulēšanas stends RAVTD3200SP.4 (RAVTD3200SP.4, RAVAGLIOLI)

TECHNICAL CHARACTERISTICS:
Min. tire size: 8";
Max. tire size: 24";
Max. wheel diameter: 910 mm;
Max. wheel base: 4500 mm;
External dimensions of the stroller (LxWxH): 1020x630x1590 mm;
Power supply: 230 V;
Warranty: 12 months;
Made in Italy.

The RAV TD 3200xx series of 3D wheel aligning stands is a new generation innovation: no cross, no lifting mechanism and plenty of space in front of the lift. The measuring chambers are located between the front and rear targets, so the alignment can be performed on different types of lifts without mixing columns. The stand is perfect for putting on the hole. Up to 8 hours of continuous work with one battery charge.
In order to save time and skip the wheel compensation phase, order the alignment bench of this series with 4-point quick mounting chucks STDA35EU/3D.

KIT:
Monitor TFT 22", computer with licensed software, keyboard with mouse and printer
Alignment stand targets x4 pcs
2 pcs
4-point grippers for the wheel alignment stand (2 pcs), STDA35EU/3D,
Front shims, 2 pcs., S110A7, RAVAGLIOLI
Bracket mounting kit, 2 pcs., STDA162, RAVAGLIOLI
Brake pedal depressor, 10479 RAVAGLIOLI
Steering lock, STDA161, RAVAGLIOLI
Vehicle Database, STDA110

AVAILABLE ACCESSORIES:
4 pcs. for accessory chucks STDA38K with which it is not necessary to perform compensation.
