Apraksts
Control panel on each column for easy operation
Mechanical locking system for enhanced safety
Automatic gear selection with screen indication
Identical columns for simplified setup and use. Wireless, battery powered. 2 batteries (2 x 12 V / 100.0 Ah) in each column, gel type, maintenance-free. 20 lifting cycles with full load

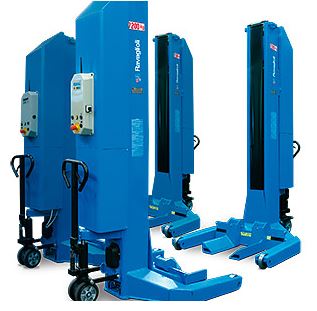

This modern electro-hydraulic column lift ensures high performance and safety for workshop operations. Each column has a lifting capacity of 8.5 tons, and the system can be configured with 4, 6, or 8 columns to suit different needs.
Technical Specifications:
Lifting capacity (per column): 8500 kg
Motor power: 3 kW
Column weight: 670 kg
Lifting time: 120 s
Lowering time: 70 s
Maximum tire diameter: 1200 mm
Minimum tire diameter: 500 mm
Minimum rim diameter: 580 mm
With, depth, height: 1140 x 1410 x 2454 mm
Space requirement height: 3875 mm
