Apraksts

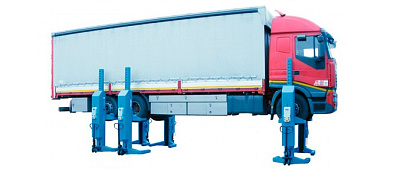

This modern electro-hydraulic column lift ensures high performance and safety for workshop operations. Each column has a lifting capacity of 7.5 tons, and the system can be configured with 4, 6, or 8 columns to suit different needs. Electrohydraulic, wireless, battery powered.
The advanced synchronization system allows operation even with a 30 mm height difference, while the 2.4 GHz wireless connection between columns ensures seamless functionality.
Technical Specifications:
Lifting capacity (per column): 7500 kg
Motor power: 3 kW
Column weight: 650 kg
Lifting time: 90 s
Lowering time: 45 s
Maximum tire diameter: 1200 mm
Minimum tire diameter: 500 mm
Minimum rim diameter: 580 mm
Key Features:
Control panel on each column for easy operation
Mechanical locking system for enhanced safety
Automatic gear selection with screen indication
Identical columns for simplified setup and use
Operating Modes:
ALL – All columns operate simultaneously
GROUP – Selected pairs of columns operate together
SINGLE – Individual column operation
