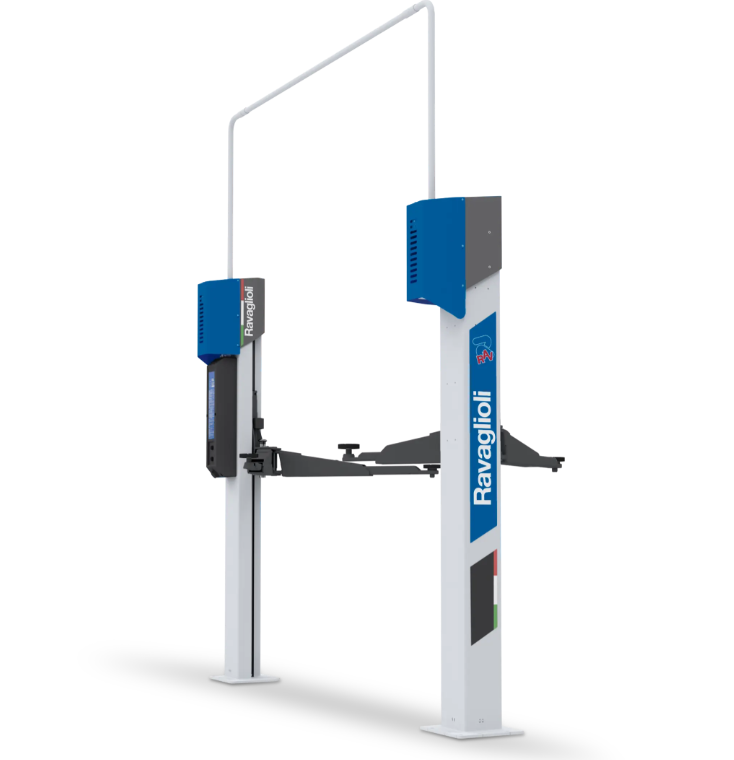

Elektromehāniskais 2 kolonnu pacēlājs 3,2 t, KPX32ER (RAV.KPX32.198815, RAVAGLIOLI)

Advantages: Control: push buttons, Energy kit, Teq-Link.
Electromechanical two-column lift with asymmetric columns angled at 45°.
Features an overhead communication system, known as a clean floor system.
This 3.2-ton lifting capacity lift has symmetric lifting arms: short arms with 3 segments, long arms with 3 segments.
Technical specifications:
Lifting capacity: 3200 kg
Maximum lifting height: 1990 mm
Lifting time: 42 s
Adjustable lifting pad height: 80 - 125 mm
Drive-through width: 2372 - 2472 mm
Required minimum ceiling height: 4150 mm
Arm configuration: symmetrical
Front lifting arm length: 585 - 1195 mm
Rear lifting arm length: 585 - 1195 mm
Motor power: 2x2.6 kW
Lift width: 3250 - 3350 mm
Lift height: 4052 mm
Power supply: 400 V | 50 Hz
