Riepu montāžas stends GRS926.MOVI (RAV.GR926.206312, RAVAGLIOLI)

Gripper rotation motor: 1.5 kW;
Hydraulic motor: 2.2 kW;
Rim diameter: 11”-27”;
Max. wheel diameter: 1300 mm | 51";
Max. permissible wheel width: 950 mm | 37.4";
Tire edge presser power: 16000 N;
Max. wheel weight: 1200 kg | 2,645 pounds;
Chuck rotation speed: 8 rpm;
Max. chuck torque: 2200 Nm | 1620 FtLbs;
Minimum diameter of central opening: 90 mm | 4";
Minimum height on a 500 mm vehicle surface: 330 mm | 13";
Weight: 403 kg;

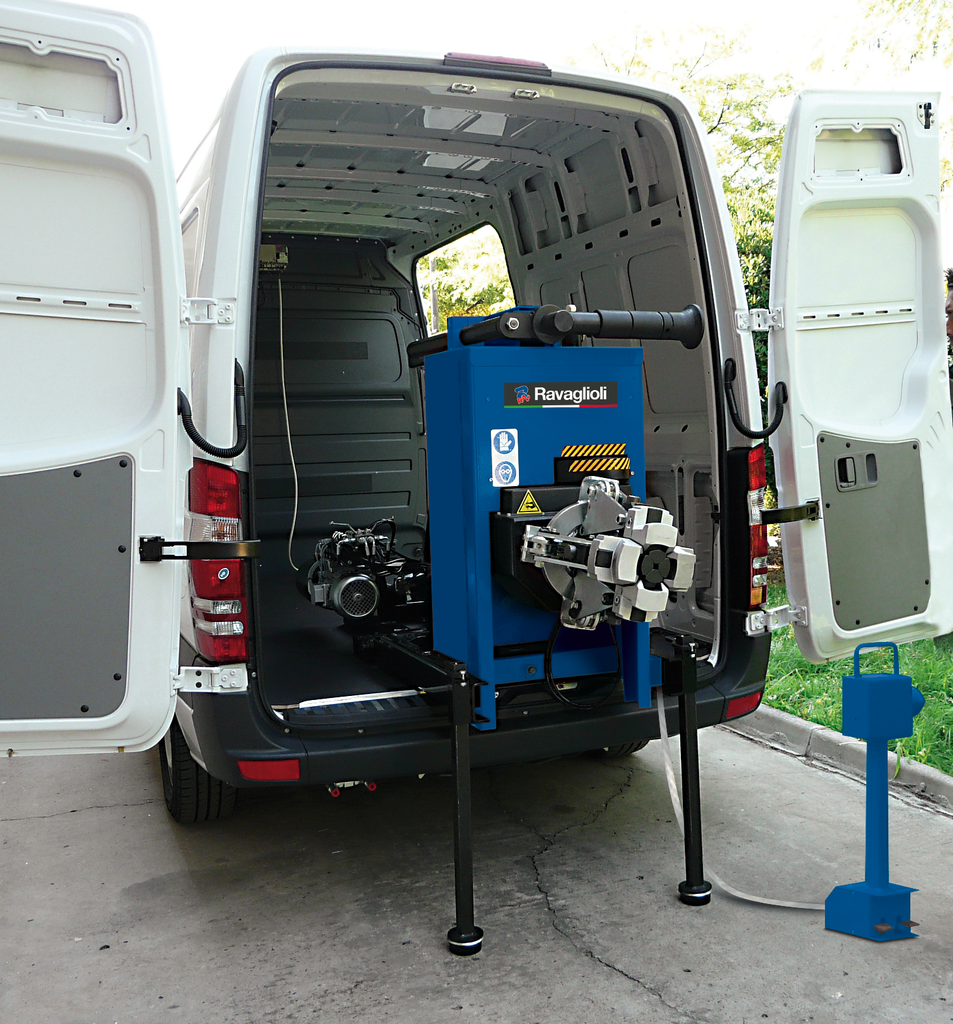

The tire mounting machine extends out from the back of the van
The machine is adapted for a mobile service bus or others
Suitable for montuori vehicle tires, trucks or agricultural tires. Electro-hydraulic control and hydraulic gripping table. After 5 seconds of non-use, the motor switches off.
