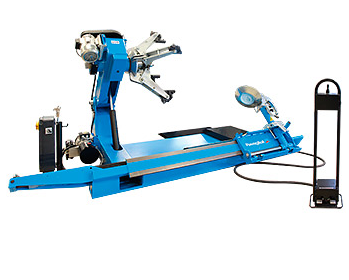

Riepu montāžas iekārta lauksaimniecības tehnikai, autobusiem un kravas auto G9156.13EI, RAVAGLIOLI (RAV.G9156.206268)

Wheels can be mounted from 11" to 43" (up to 56" with accessory G108A12), regardless of the central hole diameter.
Mobile control panel with wired communication.
Includes tire mounting tools.
Suitable for both tube-type and tubeless tires.
Technical Specifications:
Rim Diameter: 11" - 43" (up to 56" with accessory G108A12)
Hydraulic Motor Power: 1.5 kW
Wheel Rotation Motor Power: 1.1 kW
Rotation Speed: 1/5 - 10 rpm
Maximum Torque: 4000 Nm
Maximum Tire Width: 1300 mm (51")
Maximum Wheel Diameter: 2300 mm (90.5")
Maximum Clamping Force: 26,000 N
Maximum Wheel Weight: 1700 kg
Power Supply: 400V / 3Ph / 50Hz
Machine Weight: 820 kg
Warranty: 12 months
Made in Italy
