Apraksts

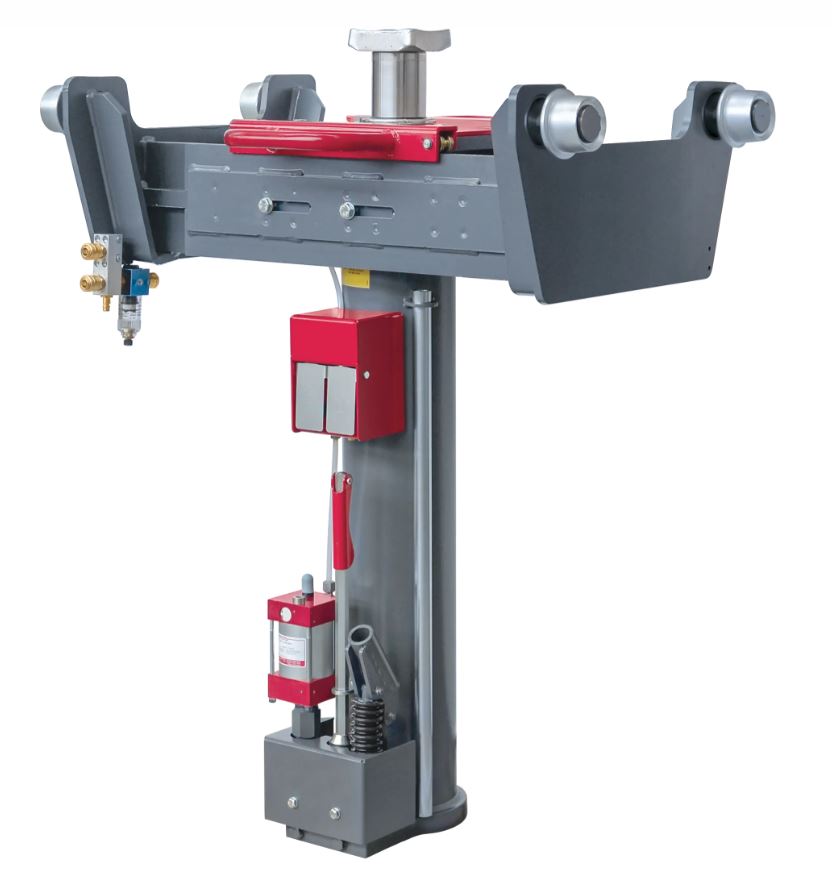

Ravaglioli suspended pit lift stands out with an innovative safety system, ensuring comfortable and ergonomic operation without compromise. It is a solution that meets the highest standards in modern lifting technology.
Lifting mechanism hydropneumatic
Control manual
Lifting capacity 15,000 kg
Lifting stroke 800 mm
Plunger diameter 80 mm
Mounting diameter 5.0 / 3.5 mm
Carriage transversely adjustable
Carriage adjustment range 800 – 1100 mm
Overall height 285 mm
Operating pressure 10 bar
Surface coating painted
Corrosion protection Ultra High Solid Primer (UHS)
Weight 285 kg
Additional features:
Quick lift function (hydropneumatic)
Forced return to the initial position (hydropneumatic)
Suspended design, allowing easy adjustment and use in the pit
