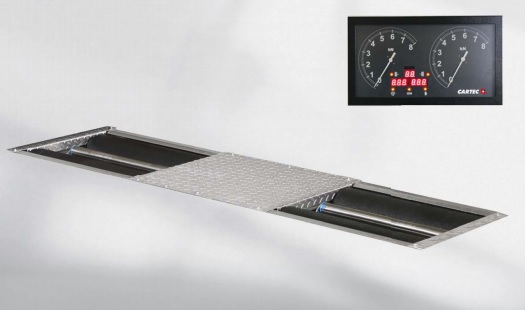

Analogais veltņu bremžu pārbaudes stends BDE 204 K SmG 700 (EEBR887AE2, CARTEC)

- Maximum weight on the axle 4000 Kg
- Measuring limits 0 - 8kN
- Diameter of testing rollers 216mm
- The length of the testing rollers is 700mm
- Min. the width of the tested rut is 800mm
- Max. the width of the tested rut is 2200mm
- Testing speed 5.4km/h
- Working temperature 0-40oC
- Power supply 400/50V/Hz
- The total power of the engines is 2 x 3.7kW
- Drum frame dimensions 2350x670x255mm
- Bench weight 400 Kg
- SmoothGrip rollers for studded tires, metal rollers. (Volus can be changed to Composite rollers - for non-studded tires, with a special corundum coating, the price does not change)
- Measurement results are displayed on the analog display
- Two measurement scales
- LED brake force difference indicator 0-99%
- Abrasion resistant test rollers
- Motors are protected against voltage spikes
- Electromagnetic brake that helps the car to leave the test rollers more easily
- Automatic or manual control
- IR remote control
- Braking force and its imbalance are measured
- Automatic reset
- 4WD accessory
- Warranty 12 months.
