Apraksts

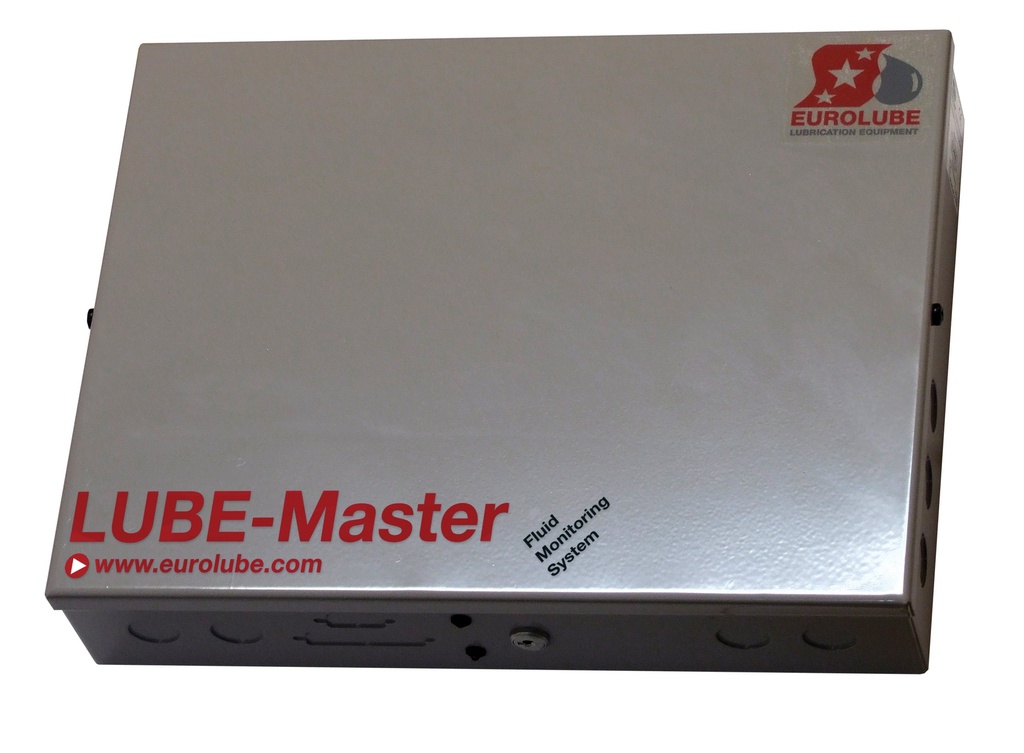

The capacity accounting module is used to control pumps, automatic start and stop. When the system is in standby mode, there is no pressure in the pipe. Real-time measurement in tanks is possible, additionally with Lube-Master level sensors. The module can only be used in computerized oil accounting systems. Up to 4 units can be connected to this module. capacity level sensors.
Power supply: 230 VAC | 50 Hz | 550mA;
Power consumption: 0.8 A;
Fuse: T630mA;
External dimensions: 303 x 228 x 65 mm;
Mounting: 4 x ø5 mm, CC = 250 x 175 mm;
Weight: 3.9 kg;
