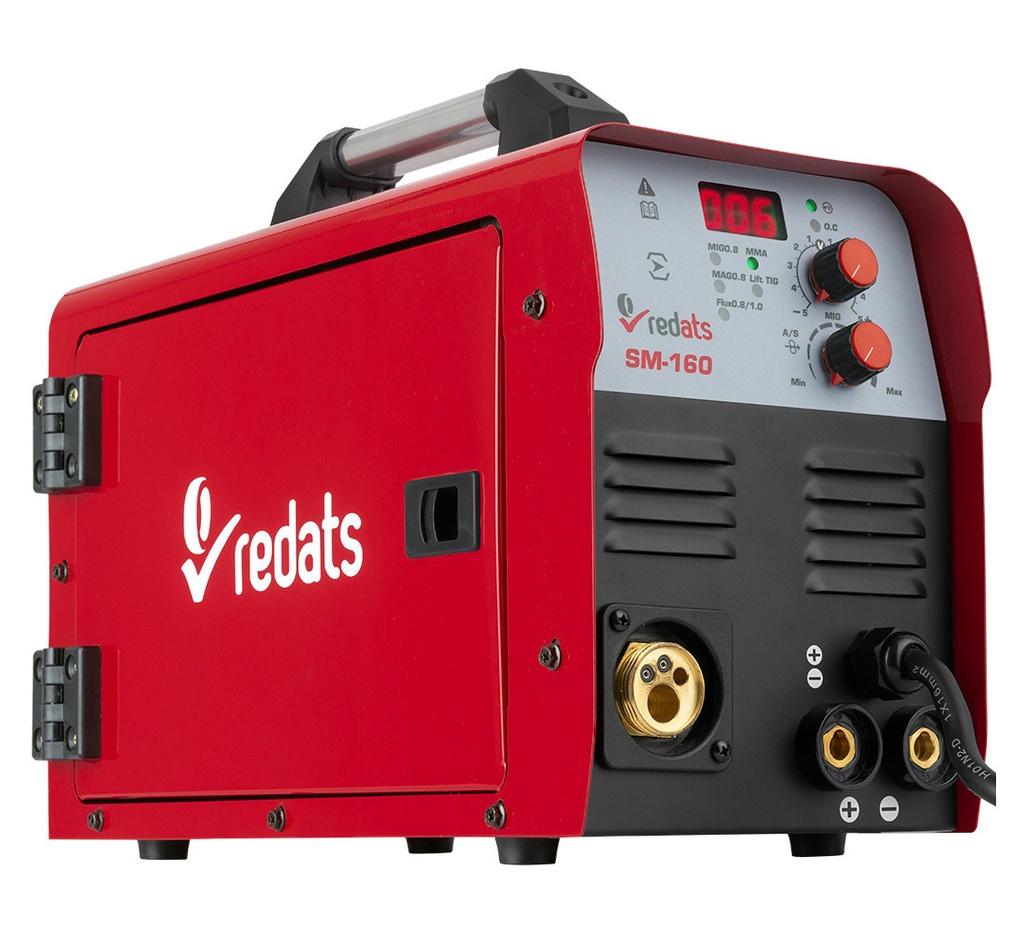

ᴿᴰ Metināšanas aparāts SM-160 (19-00-51, REDATS)

Application
This machine is designed for varios materials.

What systems does it work in?
It is designed for MMA, MIG/MAG and TIG.

Accessories in set

welding unit
instruction manual
cable tie x2
hammer/brush
current tip 0,8-1,0
welding clamp (MIG/MAG)
gas wire
welding shield
welding clamp (MMA)
Brand
REDATS
Symbol
19-00-51
Manufacturer
REDATS
Welding metod
MIG/MAG, Lift TIG, MMA, spawanie drutem Flux
Input power
6.4 kW
Power source
230V 50Hz
L1MAX
29.0A
MIG/MAG
30-160A
MMA [eng]
20-160A
Working cycle
MIG/MAG - 60%, MMA -60%
Rod diameter
0.8 - 1.0 mm
Welded material thickness
1.0 - 6.0 mm
