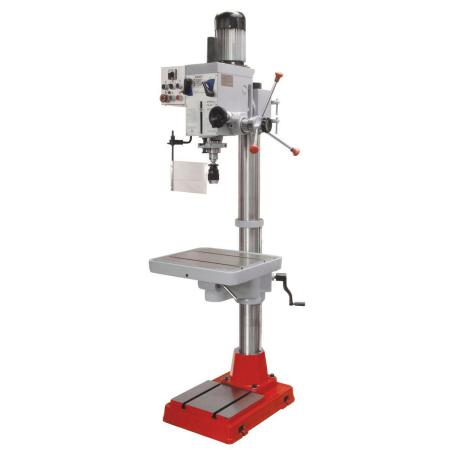

Gear-Driven Drill Press with XL Table Holzmann ZS40HS_400V

The Holzmann ZS40HS_400V is a robust, gear-driven drill press designed for professional metalworking applications. Its heavy-duty construction and versatile features make it suitable for workshops and industrial settings.
Key Features:
Motor Power: 1.1 kW (S1) / 1.5 kW (S6)
Voltage: 400 V / 50 Hz
Drilling Capacity: Up to 32 mm in steel, 40 mm in cast iron
Spindle Taper: MT4
Spindle Speed: 95–1600 rpm (6 steps)
Quill Travel: 120 mm
Table Size: 550 × 480 mm
Max. Distance Spindle to Table: 790 mm
Max. Distance Spindle to Base: 1260 mm
Column Diameter: 115 mm
Machine Height: 2120 mm
Net Weight: 320 kg
Gross Weight: 365 kg
Additional Features:
Precision-ground cast iron table with 360° rotation and 14 mm T-slots
Tiltable and height-adjustable gear head for flexible operations
Automatic tapping function with reversible spindle rotation
Oil-bath lubricated gears with hardened and ground gear wheels
Massive base plate with T-slots for mounting oversized workpieces
Torsion-resistant column with smoothed surface
Height-adjustable spindle protection with microswitch for safety
Fine infeed via precision handwheel with depth scale
