Description

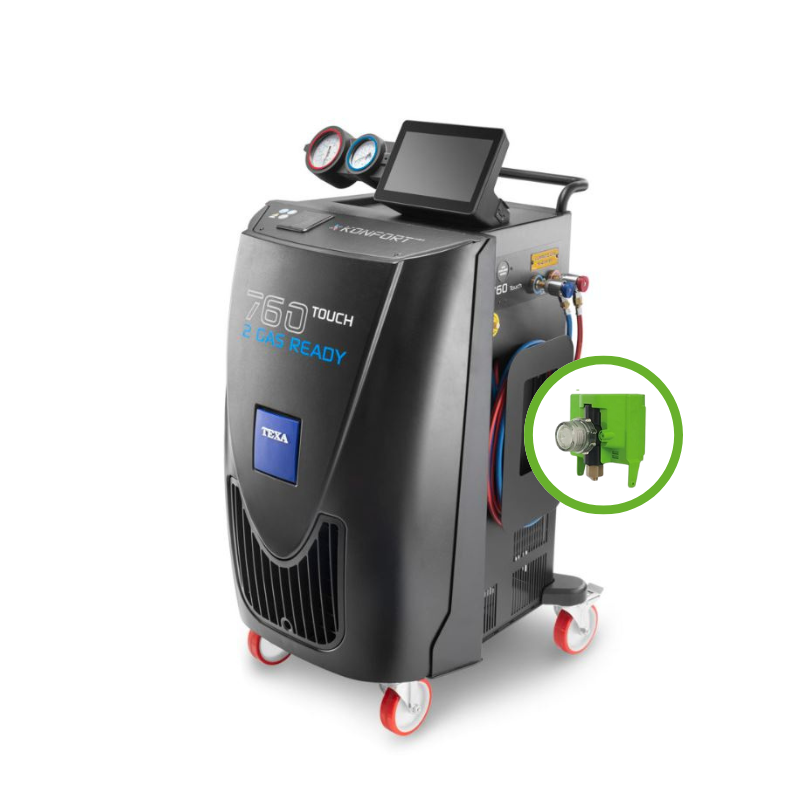

KONFORT 760 RID is a fully automated A/C service station with a high-resolution TFT touchscreen, designed for R1234yf refrigerant. It features a 20 kg tank and a two-stage vacuum pump, ensuring efficient operation. Hermetically sealed oil and dye containers prevent contamination, while the lockable scale mechanism facilitates safe transportation.
Key Features:
Automatic and manual service procedures
High-precision oil and UV dye injection
High refrigerant recovery efficiency (>95%)
Automatic non-condensable gas discharge
Rotating display with measurement instruments
Support for hybrid vehicles
Flame protection and tilt sensor
SD card support for data updates
Optional thermal printer and refrigerant analysis kit
Technical Specifications:
Refrigerant: R1234yf, Tank capacity: 20 kg, Vacuum pump: 100 L/min, Charging accuracy: ±5 g, Dimensions: 1195 x 598 x 749 mm, Weight: 98 kg.
Optional Accessories:
Flushing kit, climate control efficiency check kit, refrigerant identifying kit, forming gas leak detection case.
