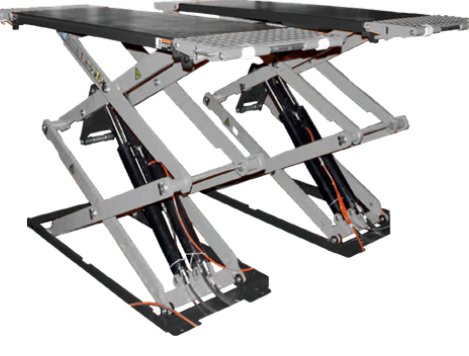

Scissor lift 3.5 t XL350 230V/380V GRUBBER (XL350N, COFRAMA)

Electrohydraulic scissor lift GRUBBER XL350

The lift is adapted for the repair of light and light commercial vehicles up to 3.5T. The construction of the lift is adapted for installation on the existing floor.
Advantages:

Fully automatic control, the entire control process takes place using the control panel;
Designed for floor mounting;
Low entry;
Electromagnetic latches;
4 hydraulic lifting cylinders;
Hydraulic safety devices in case of sudden oil leakage;
Sound signal for the last lowering stage;
Unlimited access to car doors;
Folding platform access ramps;
The set includes 4 rubber pads;
Technical specifications:

Carrying capacity - 3500kg;
Lifting height - 1920;
Minimum height - 110mm;
Platform length - 1550-2170mm;
Platform width - 650mm;
Distance between platforms - 820mm;
Width of the entire lift - 2120mm;
Weight - 964kg;
Hydraulic oil - HL32 14ltr;
Power supply - 230V or 380V
Engine power - 2.2kW;
