Description

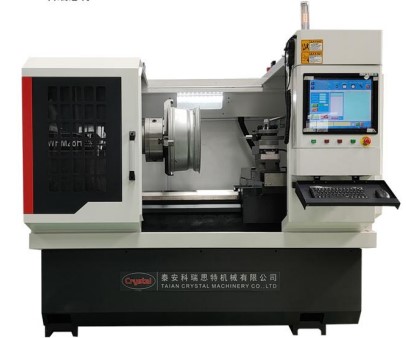

A new-generation model developed by CRYSTAL, featuring upgraded specifications, optimized control, and enhanced functionality. Designed for efficient alloy wheel machining – from brushed to mirror finishes.
Key Advantages:
• 4-position electric tool holder – fast and convenient tool change
• X/Z axis linear guideways – improved machining precision
• 17" touchscreen display, multilingual interface, dual-side PC control system
• Automatic optimization via specialized wheel repair software; optional rim straightening module
Technical Specifications:
• Max. machining diameter: Φ770 mm
• Max. workpiece length: 710 mm (supports wheel repair up to 28 inches in diameter)
• X/Z axis travel: 390 / 880 mm
• Spindle speed range: 50–2000 rpm
• Chuck size: 13", spindle bore Φ82 mm, MT6 taper
• Motor power: 4 kW
• Machine dimensions: 2280 × 1370 × 2260 mm
• Net weight: 1350 kg (gross: 1440 kg)
Standard Configuration:
Diamond cutting tools (left/right), custom soft chuck jaws, high-precision probe system, automatic lubrication and cooling system, LED work light, and instructional materials.
