PICO · Code TA408

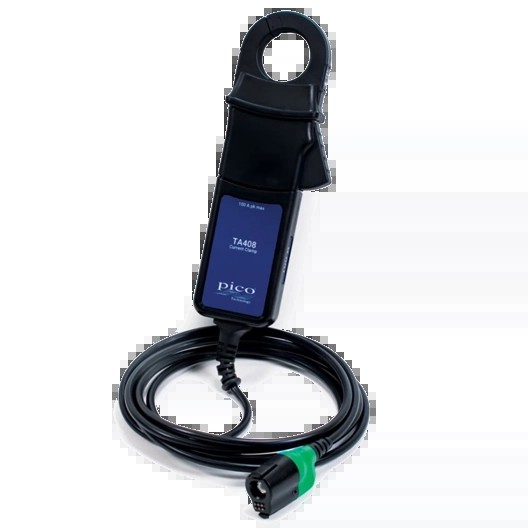

PicoBNC+ current clamp, 100 A AC/DC (TA408, PICO)
| Brand: PICO |
Description
A high-end 100 A current clamp designed to meet demanding vehicle manufacturer requirements. Closed-loop technology and a resolution of ±1 mA allow very small currents to be measured accurately, which makes it particularly suited to battery drain testing. The clamp is powered directly from the oscilloscope and zeroes itself at power-on, so no buttons are needed.
- Measurement range: 100 A DC or AC peak
- Overload capability: 500 A DC (for 1 minute)
- Frequency range: DC to 10 kHz (−0.5 dB)
- Resolution: ±1 mA; accuracy ±1 % of reading ±2 mA (+25 °C)
- Maximum conductor diameter: 32 mm
- Operating temperature: 0 to 50 °C
- Compatible with the 4225A and 4425A oscilloscopes; PicoBNC+ connection
- Weight: 0.32 kg
- Country of origin: United Kingdom
