Description

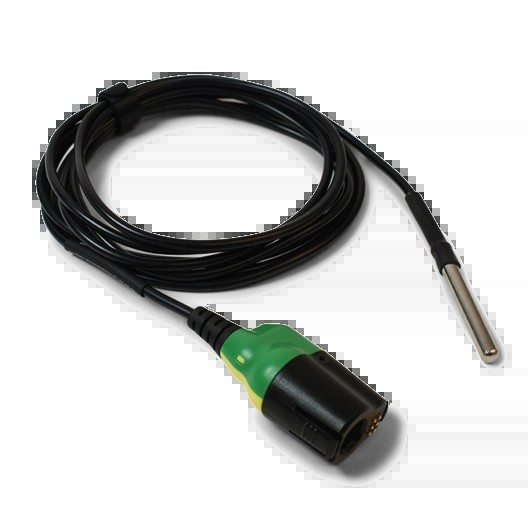

Linear temperature lead with a PicoBNC+ connection covering all common automotive and off-highway applications: engine temperature (typically +20 to +120 °C), heated seats (typically −10 to +40 °C) or car heaters (typically 0 to +50 °C). The sensor is enclosed in a 5 mm stainless steel housing suitable for both contact and airflow measurement.
- Measuring range: −40 to +125 °C
- Resolution: 0.5 °C; measuring units °C and °F
- Combined length of lead and probe: 2.85 m
- Maximum voltage: ±30 V referenced to PC ground, not CAT rated
- For PicoBNC+ oscilloscopes only, will not work with older models
- Weight: 0.07 kg
- Dimensions: 16 × 19 × 6 cm
- Country of origin: United Kingdom
- EAN: 5055859705465
