Code SPOA40E-5-EH2

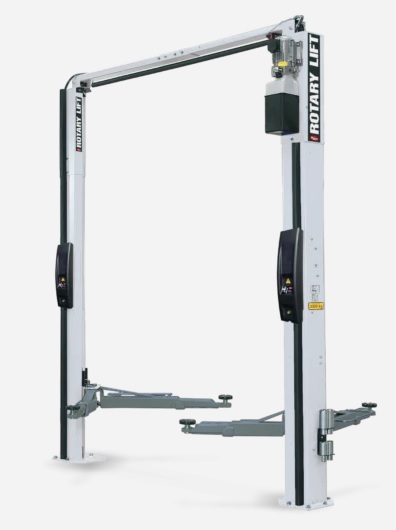

Two-column electro-hydraulic hoist 4.5 T ROTARY (SPOA40E-5-EH2, BLITZROTARY)
Description
- Carrying capacity, T 4.5
- Lifting height, mm 95-1957
- Lifting speed, s 30
- Distance between columns, mm 2860
- Passage width mm 2546
- Internal height of the lift, mm 4065
- Lift external height 4170
- Length of short lifting supports, mm 550-110600 (three positions)
- Length of long supports, mm 876-1472 (three positions)
- Power supply, 400 V, 50 Hz
- Engine 4.0 Kw
- Made in Germany
- Warranty 12 months
Control of the lift on the piled columns
With electromagnetic shutters
Powder coated RAL7040/7012
