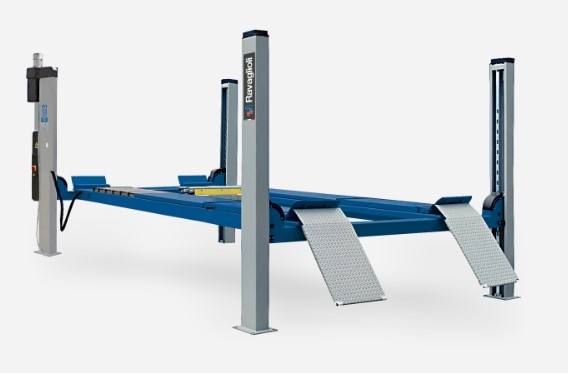

Four-post wheel alignment lift 5T, flush-mounted (recessed) version Ravaglioli (RAV4502LX1, RAV)

Technical Specification:
Lifting capacity: 5 t
Motor power: 2.6 kW
Lifting height: 1965 mm
Drive-through width: 2645 mm
Total lift width: 3355 mm
Total lift length: 6767 mm
Lifting platform length: 5700 mm
Column height: 2300 mm
Additional Information:
Extra-long platforms with space for turn plates at the front and alignment platforms at the rear
Hydraulic cylinder inside the fixed column for enhanced safety
High-strength synchronization cables
Large-diameter pulleys with self-lubricating bushings
Emergency locking safety rings in case of failure
Integrated acoustic signal during the final lowering stages
Mechanical, electrical, and hydraulic safety components comply with CE standards
