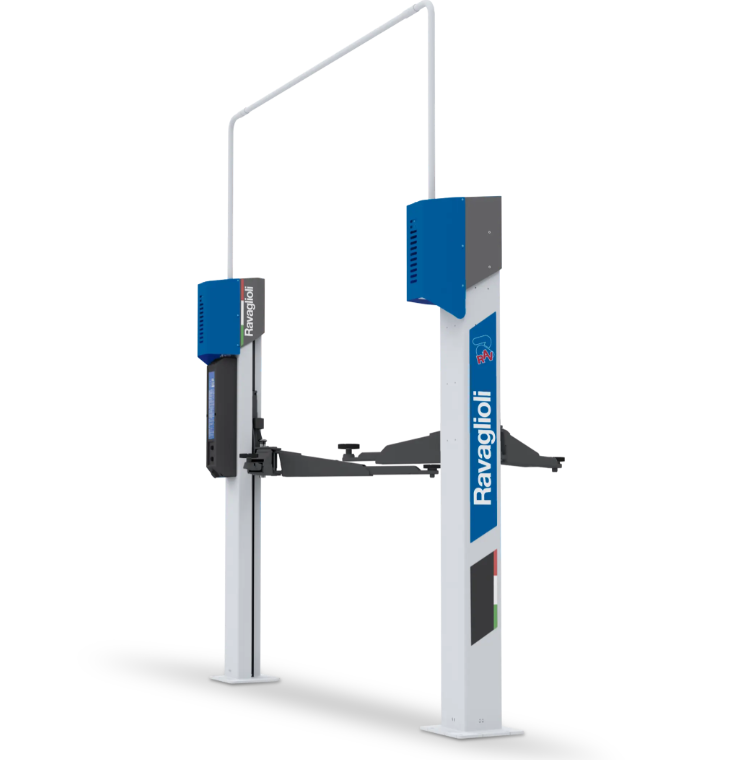

Electromechanical 2-post lift 5.5 t, KPX55ELIKTA (RAV.KPX55.198976, RAVAGLIOLI)

Advantages: Double Controls: push buttons, Teq-Link, Energy kit.
Electromechanical two-column lift with symmetric columns.
Features an overhead communication system, known as a clean floor system.
This 5,5-ton lifting capacity lift has symmetric lifting arms: short arms with 3 segments, long arms with 4 segments.
Technical specifications:
Maximum lifting height: 2052 mm
Lifting time: 58 s
Adjustable lifting pad height: 114 - 169 mm
Drive-through width: 2662 - 2762 mm
Required minimum ceiling height: 5300 mm
Arm configuration: asymmetrical
Front lifting arm length: 705 - 1790 mm
Rear lifting arm length: 822- 1791 mm
Motor power: 2x3,5 kW
Lift width: 3724 - 3824 mm
Lift height: 5210 mm
Power supply: 400/3/50Hz
Weight: 1148kg
