Code RAV.KPX42.198440

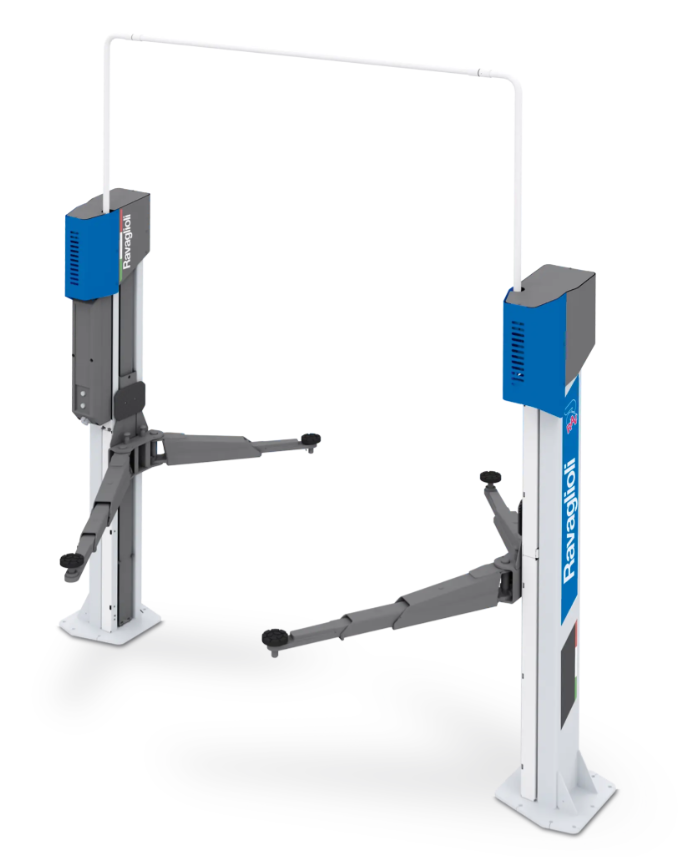

Electromechanical 2-post lift 4.2 t, KPX42LIK (RAV.KPX42.198440, RAVAGLIOLI)
Description
Advantages: Control: push buttons, Teq-Link. Arms: 705-1330mm
Electromechanical two-column lift with symmetric columns.
Features an overhead communication system, known as a clean floor system.
This 4.2-ton lifting capacity lift has symmetric lifting arms: short arms with 3 segments, long arms with 3 segments.
Technical specifications:
Maximum lifting height: 2042 mm
Lifting time: 58 s
Adjustable lifting pad height: 115 - 156 mm
Drive-through width: 2404 - 2504 mm
Required minimum ceiling height: 4100 mm
Arm configuration: symmetrical
Front lifting arm length: 705 - 1330 mm
Rear lifting arm length: 705- 1330 mm
Motor power: 2x3,5 kW
Lift width: 3428 - 3528 mm
Lift height: 4000 mm
Power supply: 400/3/50Hz
