Code RAV.KPX40.198204

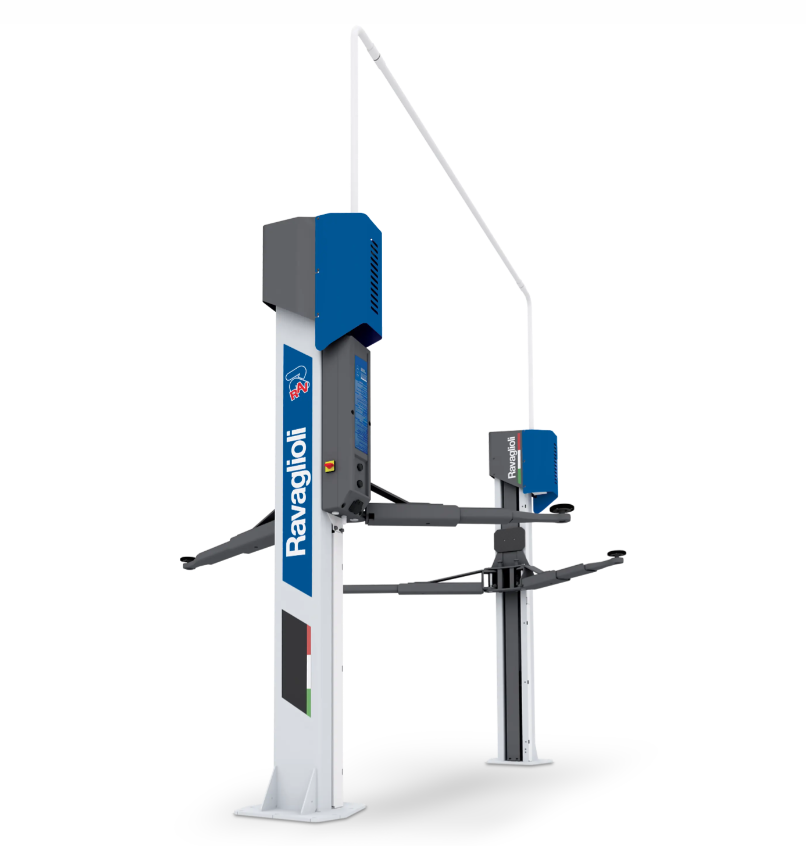

Electromechanical 2-post lift 4 t, KPX40 (RAV.KPX40.198204, RAVAGLIOLI)
Description
Advantages: Controls: push buttons, Teq-Link, AV arms.
Electromechanical two-column lift with symmetric columns.
Features an overhead communication system, known as a clean floor system.
This 4-ton lifting capacity lift has symmetric lifting arms: short arms with 3 segments, long arms with 3 segments.
Technical specifications:
Maximum lifting height: 2011 mm
Lifting time: 58 s
Adjustable lifting pad height: 97 - 127 mm
Drive-through width: 2504 mm
Required minimum ceiling height: 4100 mm
Arm configuration: asymmetrical
Front lifting arm length: 470 - 1039 mm
Rear lifting arm length: 700- 1480 mm
Motor power: 2x3,5 kW
Lift width: 3428 – 3528 mm
Lift height: 4000 mm
Power supply: 400/3/50Hz
