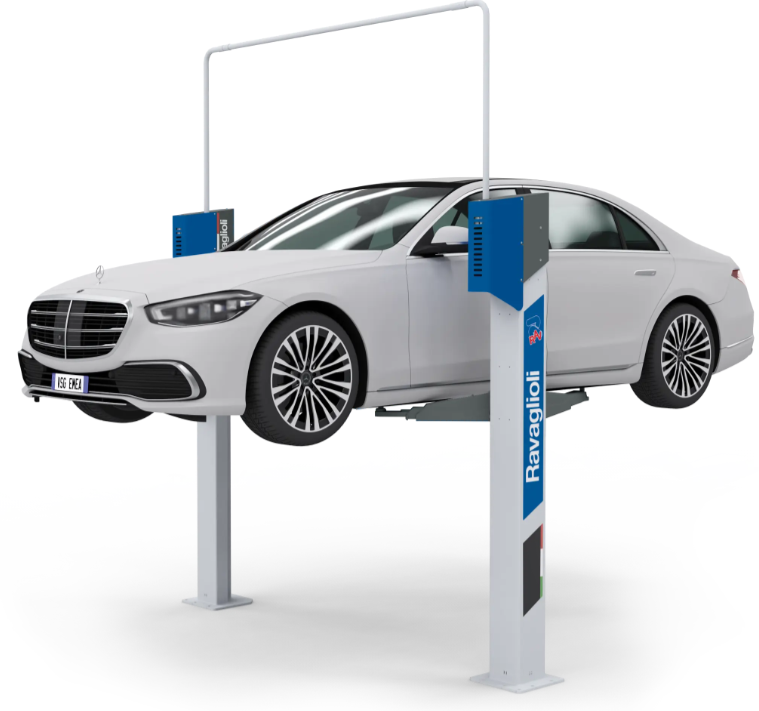

Two-post electromechanical lift KPX32 3.2 t (RAV.KPX32.198570, RAVAGLIOLI)

Electromechanical two-column asymmetric lift, angled at 45°.
The lift communication is installed at the top, referred to as a "clean floor system."
This 3.2t capacity lift features asymmetric lifting arms: short ones with 3 sections, long ones with 2 sections.
Technical specifications:
Lifting capacity: 3200 kg
Maximum lifting height: 2000 mm
Lifting time: 42 s
Adjustable lifting pad height: 96 - 130 mm
Column height: 2920 mm
Drive-through width: 2372 - 2472 mm
Required minimum ceiling height: 4150 mm
Lifting arm configuration: asymmetric
Front lifting arm length: 555 - 1100 mm
Rear lifting arm length: 805 - 1200 mm
Motor power: 2x2.6 kW
Lift width: 3250 - 3350 mm
Lift height: 4052 mm
Power supply: 400V/50 Hz
