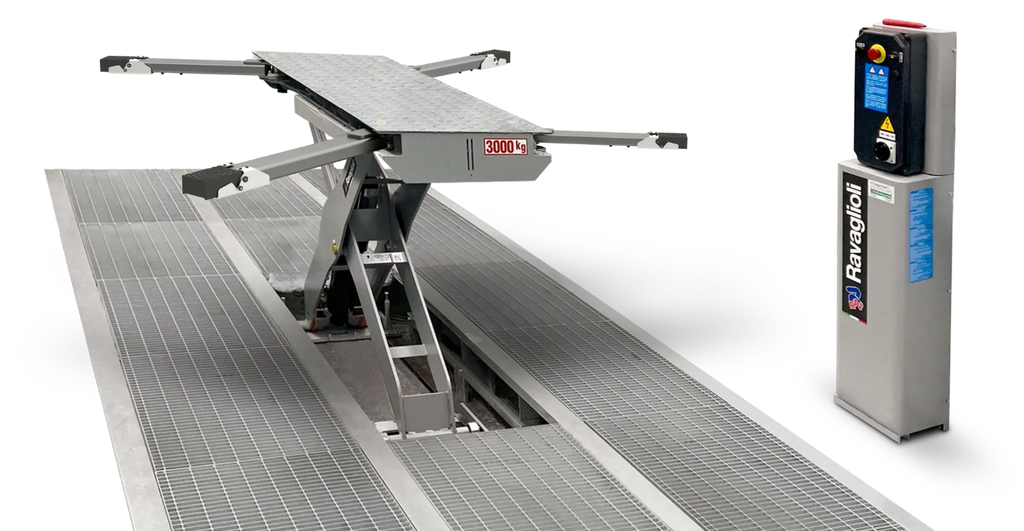

Hydropneumatic Body shop inground lift 3T, RAVAGLIOLI (RAV.KBI30.199782)

Scissor lift ideal for installation in both paint booth grids and preparation areas, and flush-mounted for traditional floors. Its ergonomic design allows you to easily reach the pick-up points of the vehicles, eliminating all obstacles surrounding the vehicle, in this way making every operation on the chassis easier.
Pneumo-hydraulic lift with manual arms. Minimal and compact solution operational without voltage. Also suitable for installation in paint booths.
Technical specifications:
Maximum lifting height: 1623 mm
Lifting time: 150-170 s
Lowering time:60-90 s
Maximum lift height from the floor: 1353 mm
Air supply: 7-8 bar
Motor power: 2.6 kW
Platform width: 650 mm
Platform length: 1950 mm
Power supply: 400 V | 50 Hz
Length: 1950 mm
Width: 650 mm
