Code P2-R2-35AR46-R

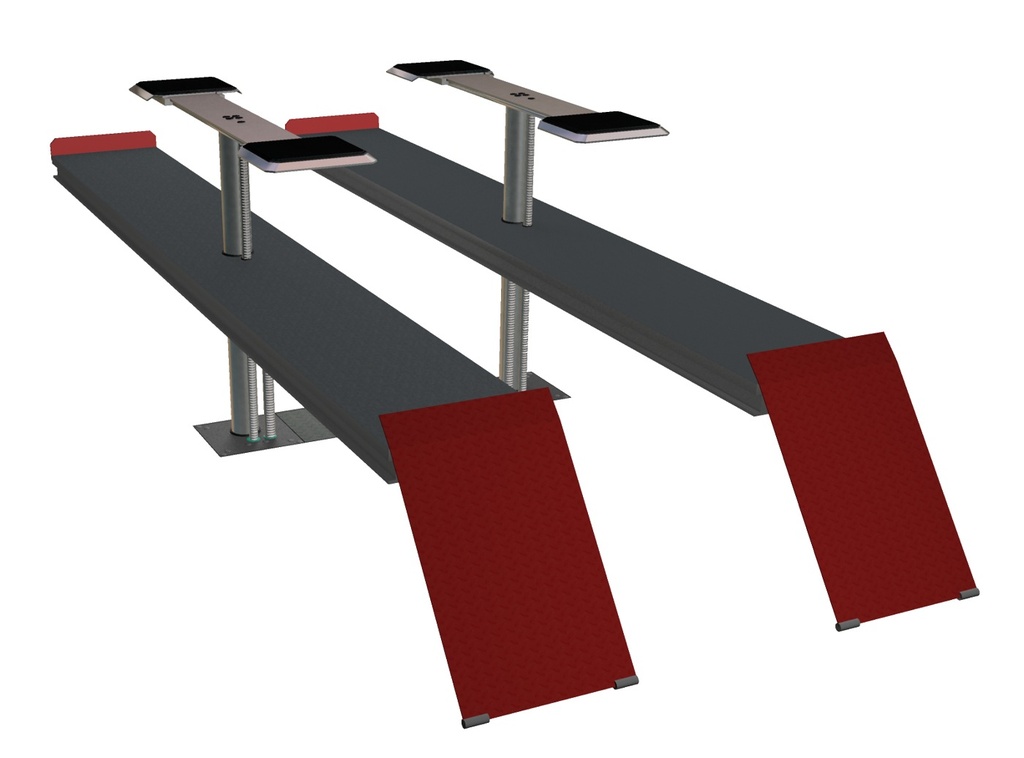

Two-ram lift P2-R2 35AR R with wheel-free lift, 4600 mm runways, 3.5 t (P2-R2-35AR46-R, PITLIFT)
Description
Complete two-ram lift with wheel-free lift and CE-Stop: hot-dip galvanized drive-on runways, drive-on flaps and approach plates powder-coated in RAL3020 red, integrated wheel-free lift as a runway-mounted repair support R-20 with rubber plates, hydraulic power unit, control box and cover. Supplied without hydraulic oil.
- Runway capacity: 3.5 t
- Runway stroke: 1800 mm
- Wheel-free lift capacity: 3.5 t
- Wheel-free lift stroke: 1900 mm
- Drive-on runways: 4600 x 600 mm
- Drive-on flaps: 850 mm
- Adjustment range: 1400-2000 mm
- Cylinder diameter: 2x125/2x90 mm
- Cylinder spacing: 1350 mm
- Hydraulic oil volume: 100 l
