Code P2-35.19-R.B

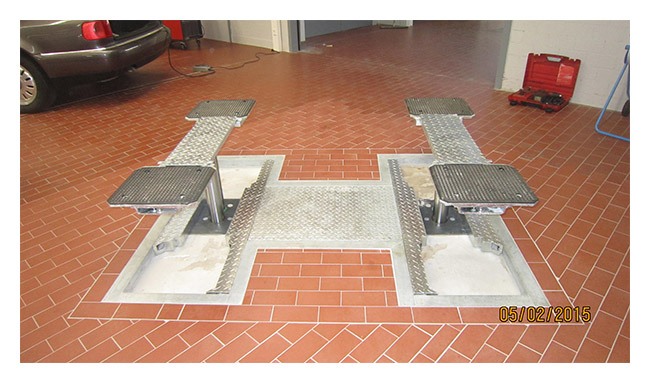

Two-ram floor-level pit lift P2-35 R.B with repair support, 3.5 t, CE-Stop (P2-35.19-R.B, PITLIFT)
Description
Complete two-ram floor-level (recessed) P2-35 R.B lift with repair support, hydraulic power unit, control box and cover, supplied with CE-Stop.
- Capacity: 3.5 t
- Useful stroke: 1830 mm
- Ram diameter: 2x90 mm
- Ram spacing: 1350 mm
- Adjustment range from 1400 to 2000 mm
- Sliding supports without run-up ramps
- Repair support hot-dip galvanised, with rubber plates
- Hydraulic oil volume: 55 litres, oil not included
- With CE-Stop
- Filler pieces are included with the frame item and are delivered together with the lift
