Code P-THP 20/1200U/L

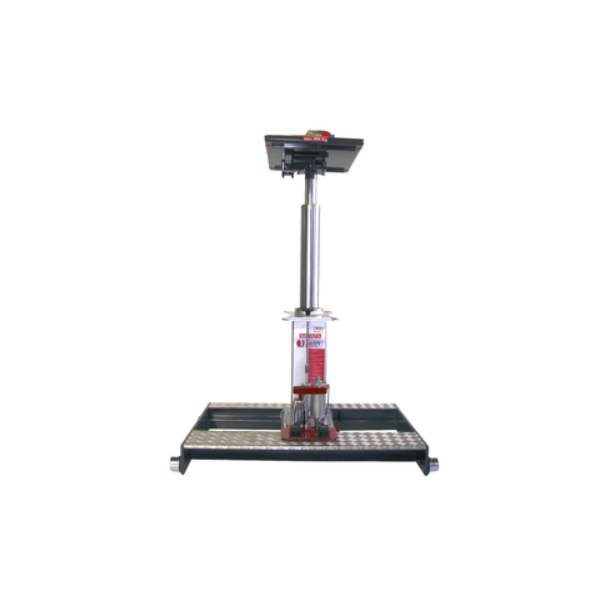

Hydraulic-pneumatic telescopic pit lift, floor rail-mounted, 20 t, 1200 mm (P-THP 20/1200U/L, PITLIFT)
Description
Hydraulic-pneumatic telescopic pit lift with automatic load lifting by compressed air. Fast lifting without load and load lifting are controlled by hydraulic-pneumatic pedals, the ram is lowered via the release shaft.
- Capacity: 20 t
- Lifting stroke: 1200 mm
- Lifting cylinder diameter: 70 mm
- Base diameter: 45 mm
- Overall height: 890 mm
- Pneumatic pressure: 8–10 bar
- Control: hydraulic-pneumatic
- Chassis type: travelling on a rail on the floor
- Weight: 355 kg
- Made in: Germany
Standard air preparation system with water separator and oil atomiser. The hard chrome-plated ram rod and pump piston ensure a long service life. Chassis with needle bearings for easy movement, adaptable to individual pit dimensions.
