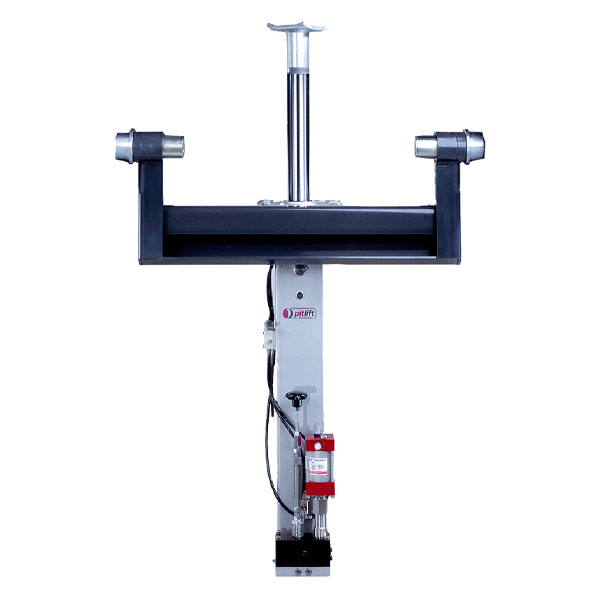

Pit axle jack, hydraulic-pneumatic, running along pit edges, 16.5 t (P-PH-L 16/750, PITLIFT)
Code P-PH-L 16/750

Pit axle jack, hydraulic-pneumatic, running along pit edges, 16.5 t (P-PH-L 16/750, PITLIFT)

https://autoirankiai.lt/web/image/product.template/20400/image_1920?unique=8258fea

6,056.04 € 6056.04 EUR 6,056.04 €

Not Available For Sale

excl. VAT: 5,004.99 €
3 × 2,018.68 € interest-free (Neopay 3)
or instalments up to 48 monthsHow does it work?

Item on order · Usual delivery: 6–12 business days

This combination does not exist.

Get a price quote Suggest your own price
  • Installation and service in Kaunas – our own technicians
  • Our store and warehouse: Ateities pl. 30G, Kaunas
  • VAT invoice
  • Questions? Call +370 674 40662
Contact Us

Description

PITLIFT P-PH-L 16/750 – telescopic pit axle lift travelling along the pit edges, with hydraulic-pneumatic control.

  • Manufacturer: PITLIFT
  • Manufacturer code: P-PH-L 16/750
  • Capacity: 16.5 t
  • Lifting stroke: 750 mm
  • Lifting cylinder diameter: 70 mm
  • Overall height: 1075 mm
  • Pneumatic pressure: 8–10 bar
  • Weight: 190 kg
  • Fast lifting without load and load lifting controlled by pedals
  • Hard chrome-plated ram rod and pump piston
  • Air preparation system with water separator and oil atomiser
  • Chassis with needle bearings, adaptable to the pit dimensions
  • Made in Germany
