Description

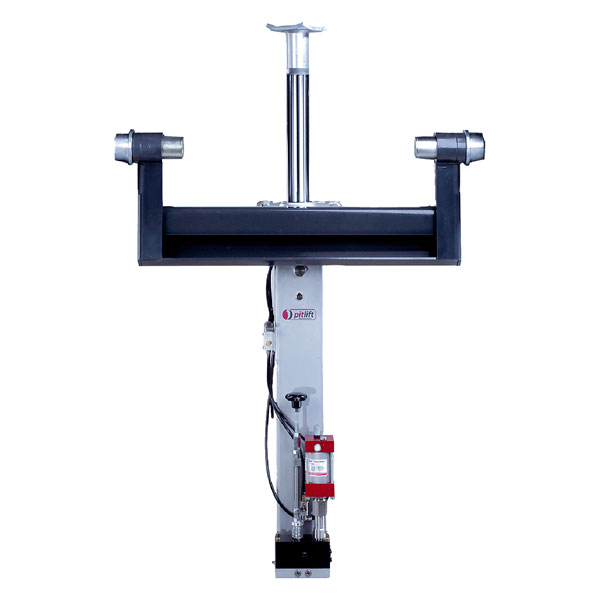

PITLIFT P-PH-L 14/450 – pit axle lift travelling along the pit edges, with air-hydraulic lifting and pneumatic cylinder return.
- Manufacturer: PITLIFT
- Manufacturer code: P-PH-L 14/450
- Capacity: 14.5 t
- Hydraulic cylinder stroke: 450 mm
- Overall height: 720 mm
- Cylinder diameter: 70 mm
- Weight: 153 kg
- Warranty: 12 months
- Overload valve and protection against sudden dropping
- Polished hydraulic cylinder coated with a thick chrome layer
- Rollers with needle bearings and lubrication points
- Made in Germany
