Description

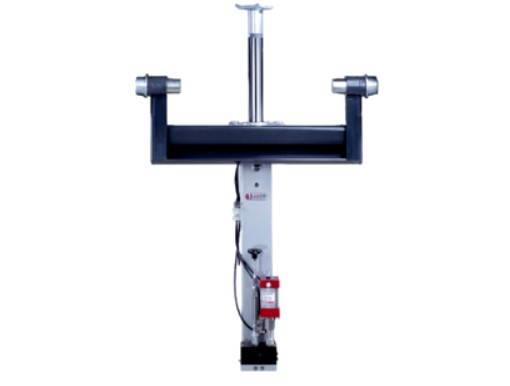

Pit axle lift designed for mounting on the edges of an inspection pit. Fully hydraulic control, lifting by hand pump. Pneumatic cylinder return (6–10 bar compressed air pressure required). PITLIFT anti-corrosion protection ensures periodic cylinder lubrication. The hydraulic cylinder is polished and coated with a thick chrome layer. Overload valve and protection against sudden dropping. Capacity: 16.5 t. Hydraulic cylinder stroke: 750 mm. Overall height: 1075 mm. Cylinder diameter: 70 mm. Weight: 185 kg. Made in Germany.
