Code P-HP-L 16/750F

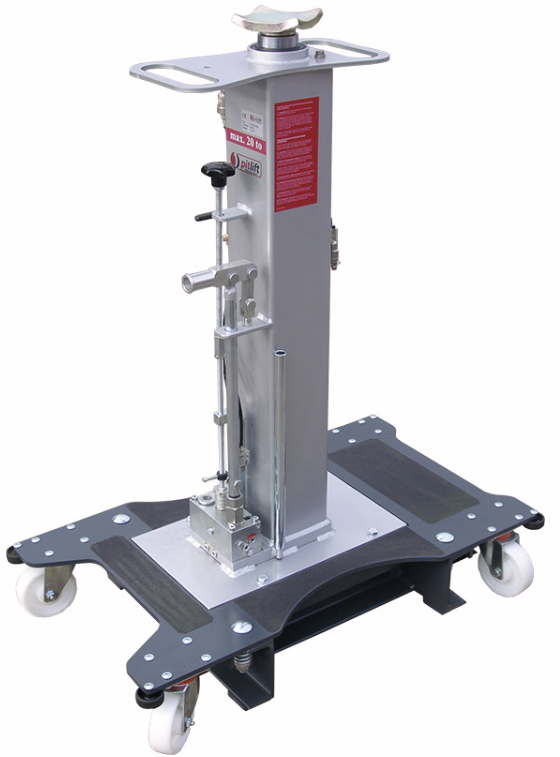

Pneumo-hydraulic pit axle lift 16.5 T, 750 mm, Pitlift (P-HP-L 16/750F, PITLIFT)
Description
PITLIFT P-HP-L 16/750F air-hydraulic pit axle lift – designed for lifting the axles of trucks, buses and other heavy vehicles in repair pits. Moves freely along the pit floor.
- Capacity: 16.5 t
- Lifting height: 750 mm
- Cylinder diameter: 70 mm; support pin diameter: 45 mm
- Overall height: 1171 mm
- Weight: approx. 145 kg
- Compressed air pressure: 8–10 bar
- Control: hydraulic / pneumatic
- Manufacturer: PITLIFT
