Code P-HP-L 14/750U

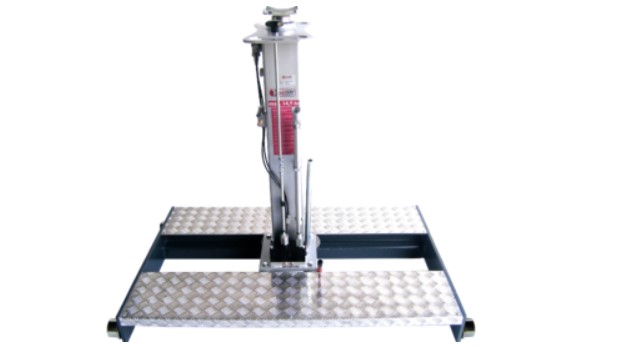

Pneumatic-hydraulic pit jack with wheels and automatic lifting, PITLIFT (P-HP-L 14/750U, PITLIFT)
Description
Air-hydraulic pit axle lift travelling along the pit floor. Designed for lifting an axle while working in an inspection pit.
- Capacity: 14 t
- Lifting height: 750 mm
- Overall height: 1171 mm
- Ram diameter: 70 mm
- Working pressure: 8–10 bar
- Weight: 330 kg
Equipment features: air-hydraulic pump; air mixer for collecting moisture and ensuring continuous lift lubrication; cylinder approach to the lifting point and lifting by the air-hydraulic pump; pneumatic quick cylinder lowering; cylinder coated with a thick chrome layer.
