Code L192E

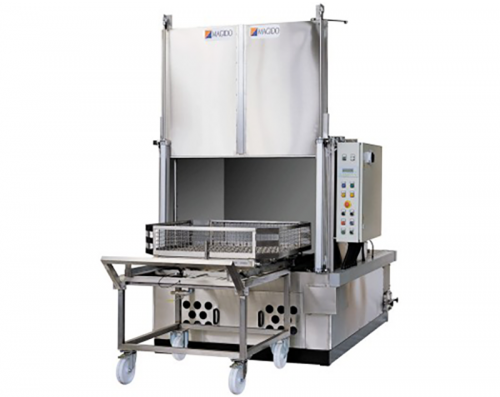

Two-tank hot cleaning washer X53/2, electric heating, 400V 3Ph+N (L192E, MAGIDO)
Description
MAGIDO L192E is a two-tank X53/2 series hot wash and rinse machine with electric heating. It is designed for plants and repair shops that wash and rinse heavy assemblies in a single automatic cycle.
- Basket: 1300x1300 mm, load height 900 mm, max load 700 kg
- Tanks: 580 l wash and 380 l rinse, working temperature up to 75 °C
- Pumps: wash 500 l/min at 4.5 bar (10 hp); rinse 350 l/min (5.5 hp)
- Heating: electrical 24+16 kW
- Power: 49 kW total installed, 400V 3Ph+N
- Overall size: 2300x4500x3200 mm
- Code: L192E
