Code L162M

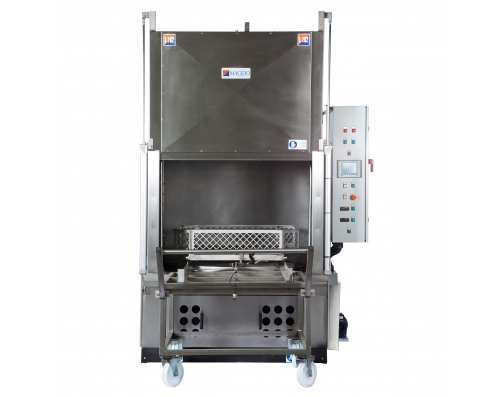

Two-tank hot cleaning washer X53/2, natural gas burner, 400V 3Ph+N (L162M, MAGIDO)
Description
MAGIDO X53/2 (L162M) is a two-tank multi-stage hot wash and rinse degreasing machine in stainless steel with a natural gas burner. It washes and rinses bulky components with hot water and biodegradable detergent.
- Rotating basket: 1100x1100 mm; load height 800 mm; max load weight 700 kg
- Tanks: wash 420 l and rinse 300 l; working temperature 75 °C
- Pumps: wash 450 l/min at 4 bar (7.5 hp); rinse 350 l/min at 3.5 bar (5.5 hp)
- Heating: natural gas burner 29000 kcal/h instead of electrical; power with burner 18+12 kW, total installed power 32 kW
- Extractor fan: 800 m³/h; basket rotation 7 rpm
- Supply and dimensions: 400 V 3Ph+N; 2100x4000xH3000 mm
- Code: L162M
