Description

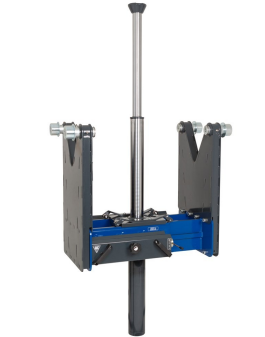

AC Hydraulic GDT is a telescopic air-hydraulic pit jack designed for efficient and safe vehicle lifting in workshop environments. Its compact construction and long lifting stroke offer greater versatility compared to standard pit jacks.
Key Features:
Telescopic cylinder: Provides a long 1280 mm lifting stroke, allowing height adjustment from 900 mm to 2180 mm
Versatile application: Adjustable frame fits pit widths from 725 mm to 1410 mm
Laterally sliding cylinder: Allows precise positioning of the lifting point, lockable under an 800 kg load
Safety: Features a dead man’s release system and overload valve for secure operation
Ergonomic control: Control panel is placed at a convenient height to reduce operator fatigue
Technical Specifications:
Lifting capacity: 15 tons
Cylinder diameter: 60 mm
Air supply: 8–10 bar
Weight: 250 kg
Depth: 735 mm
This jack is manufactured in Viborg, Denmark, in accordance with the highest quality standards. It is an ideal solution for professional workshops focused on efficiency, safety, and durability.
