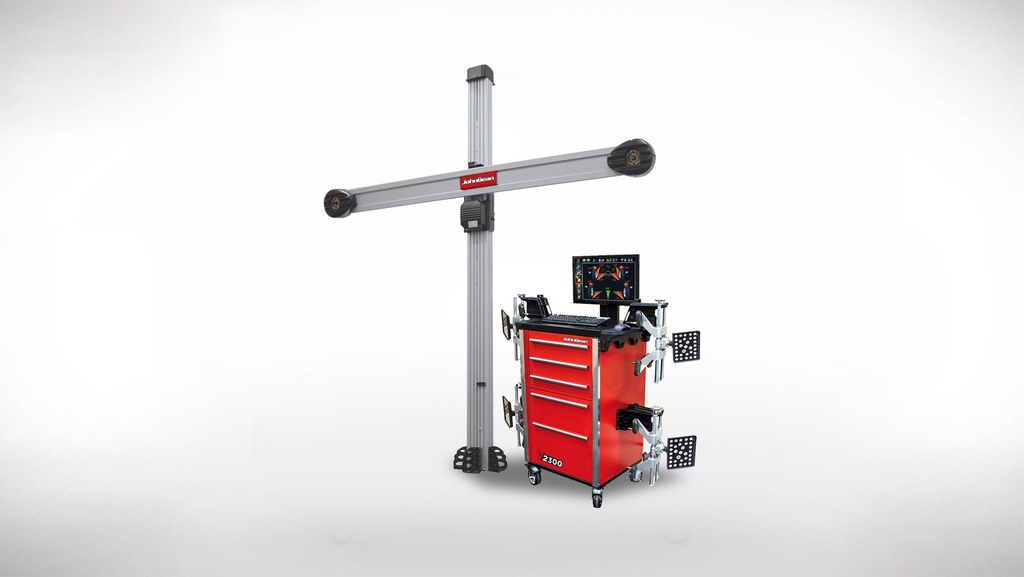

3D wheel alignment system John Bean V2300 AC100 (EEWAEU545G1, JOHN BEAN)

TECHNICAL DATA AND APPENDICES
Track width 121.9 cm - 243.8 cm
Wheelbase 200.7 cm - 457.2 cm
Weight 227 kg
Power supply 230 V 1ph 50-60 Hz
AC400 terminals
Wheel diameter 19" - 39" (48.3 cm - 99.1 cm)
Weight 3.13 kg
Compression force 164.6 N
Material Magnesium alloy
AC100 terminals
rim diameter 11"-22"
Weight from 4.9 to 5.2 kg
Material Aluminum alloy
Standard accessories
Wheel clamps
Steering wheel lock
Brake lock
Protective wedges (set)
Color printer
OPTIONAL ACCESSORIES
Universal clamp AC100 (set) *:
EAK0320J36A
Driving assistance camera:
EAK0289J91A
Mobile Kit: EAK0320J78A
Adapter for setting
geometry without wheels (AC100 / AC400):
EAK0222J83B
Universal extension kit
AC100 (increases rim diameter by 4 inches):
30926
Double pole:
EAK0289J80A
Center column:
4031236
Double Low Pole:
EAK0289J81A
Low center column:
4031234
Cylinder for changing the angle of inclination of the beam:
4031154
