Description
The joint play detector can check tie-rod ends, bearings, axle suspension and assemblies, stabilizers, double axle suspension, trailer coupling installation. Automatic or manual control of the test bench is possible. The inspection plates automatically return to their original position. The test modes are selected through the test lamp. The keyboard is covered with oil-resistant foil.
Maximum axle load: 20 T;
Temperature: up to 70 °C;
Plate movement speed: max. 50 mm/sec. (2 panels), max. 100 mm/sec. (1 plate);
Test plate movement: 100 mm;
Measurements of the test plates: 850 x 1030 mm;
Working pressure: 170 bar;
Amount of hydraulic oil in the system: 6 l;
Movement force: ≥ 30 kN;
Power supply: 3/N/PE 400 V | 50/60 Hz;
Power: 3 kW;
Fuse: 10 A;
Movement directions: 4 (opposite), 8 (same direction);

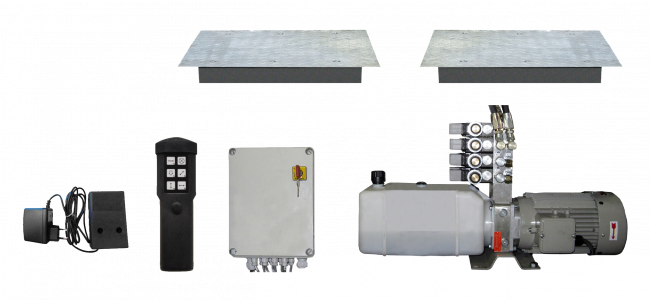

KIT:
Test plates;
Hydraulic aggregate;
Lamp and charging station;
Control panel;
