Description

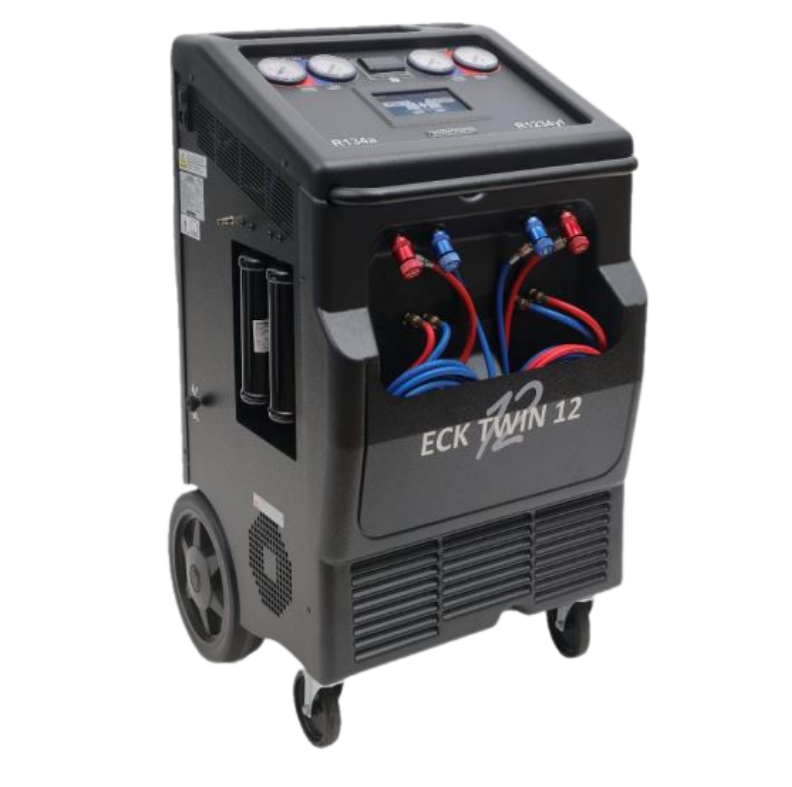

The ECK TWIN 12 is a fully automatic A/C charging station designed for the recovery, recycling, and refilling of R134a and HFO1234yf refrigerants. Its dual independent circuit system ensures safe and efficient servicing of both refrigerants.
Key Features:
7-inch color touchscreen display – easy and intuitive operation
Dual independent refrigerant circuits – safe handling of both R134a and HFO1234yf
Hybrid function – supports electric compressors with automatic flushing of service hoses and internal circuits
Automatic pressure test using nitrogen or hydrogen/nitrogen mixture
Wi-Fi connectivity – remote diagnostics and software updates
Automatic purging of non-condensable gases
4 hermetic containers for oil and UV dye management
Technical Specifications:
Refrigerants: R134a and HFO1234yf
Vacuum pump: 100 l/min (0.1 mbar)
Compressors: 2 x 1/3 HP
Recovery speed: 300 g/min (liquid phase)
Two 12-liter refillable tanks
Operating temperature range: 11–49 °C
Filtration system: 2 moisture filters
Power supply: 220-240V, 50/60 Hz
Dimensions / weight: 67 x 62 x 107 cm, 122 kg
