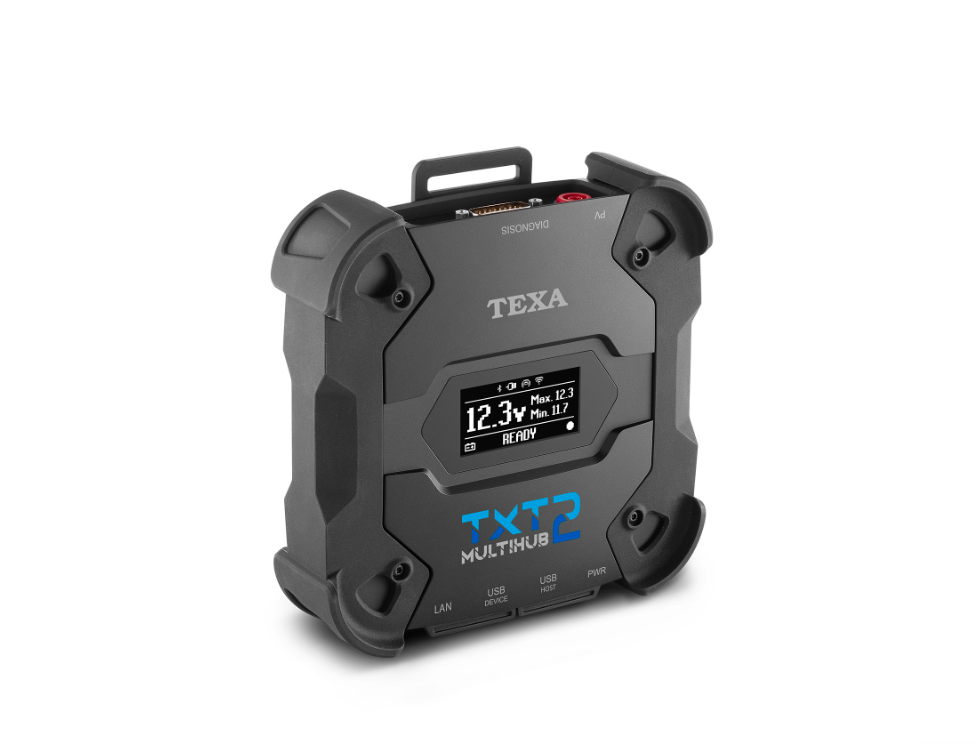

Diagnostic Interface TEXA NAVIGATOR TXT MULTIHUB 2, D195A0

The NAVIGATOR TXT MULTIHUB 2 diagnostic module is a professional, multifunctional vehicle diagnostic device designed for use with various types of transport, including passenger cars, trucks, motorcycles, agricultural and construction machinery, and marine vessels. It is a top-tier diagnostic solution featuring broad compatibility, advanced connectivity options, and support for modern diagnostic protocols. The device is engineered for fast, convenient, and versatile operation in workshops, including remote diagnostics and ECU programming.

Key technical specifications:

Power supply: 12–24 V (from vehicle battery)

Current consumption: 1 A @ 12 V / 0.5 A @ 24 V

Main processor: iMX6, 1 GHz

Memory: RAM: 512 MB; Internal: 8 GB eMMC

Connectivity: Wi-Fi (IEEE 802.11 b/g/n); Bluetooth (BDR/EDR/LE)

Interfaces: USB 2.0 (host and device); Ethernet (for DoIP diagnostics)

Diagnostic connector: DSUB-26HD (ISO 22900-1)

Display: Integrated 2.42″ OLED display (64 × 128 resolution); real-time battery voltage and operating status display

Operating temperature: 0 to +50 °C

Storage temperature: –20 to +60 °C

Humidity: 10–80% (non-condensing)

Weight: approx. 600 g

Protection rating: IP53 (dust and splash resistant)

Durability: Shock-resistant (MIL-STD 810G compliant)

Supported protocols:

CAN, CAN FD (up to 4 channels)

DoIP (ISO 13400)

Pass-Thru (SAE J2534-1/2)

ISO 9141-2, ISO 14230
