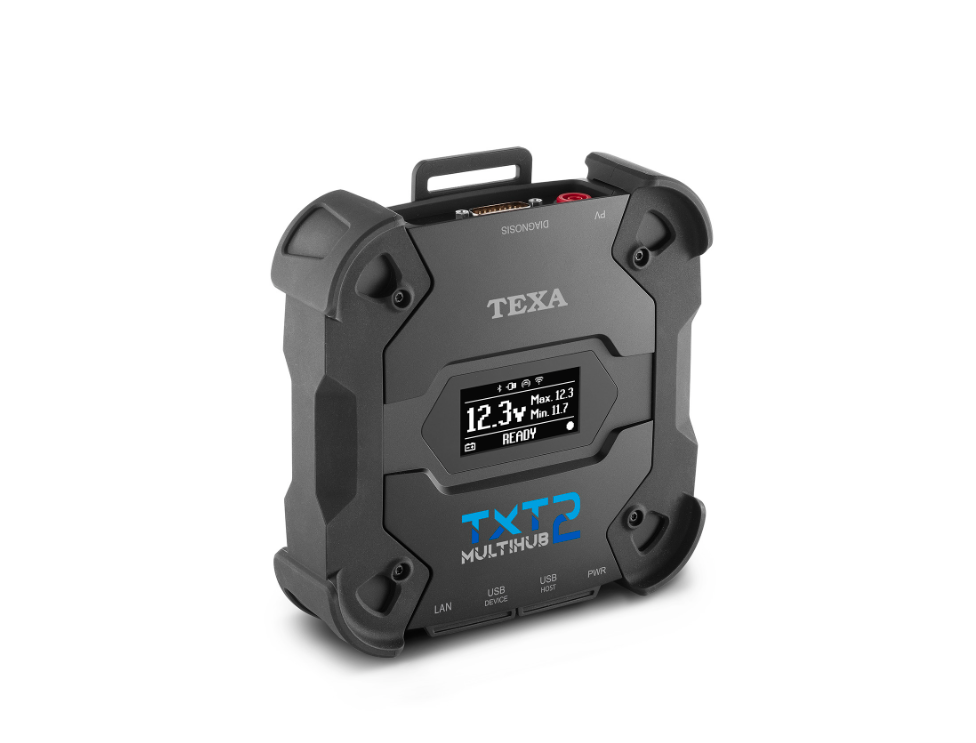

Diagnostic Interface TEXA NAVIGATOR TXT MULTIHUB 2, D195A0

It is TEXA’s most advanced and versatile vehicle diagnostic interface, designed for professionals working across multiple sectors: cars, trucks, bikes, off-highway, agricultural, marine.
It features triple connectivity – Wi-Fi, Bluetooth, and USB-C – and runs on a secure Linux operating system, ensuring fast communication and real-time diagnostics. TXT MULTIHUB 2 connects directly between the TEXA tablet (e.g., AXONE NEMO PLUS) and the vehicle’s ECUs, supporting the latest communication protocols, including DoIP and CAN FD.
Technical Specifications:
Processor: ARM Cortex-A7, 1 GHz
Operating System: Embedded Linux
Memory: 1 GB RAM, 8 GB Flash
Connections:
Wi-Fi IEEE 802.11b/g/n
Bluetooth® 4.2 + EDR
USB-C (wired diagnostics)
Supported Protocols: CAN, CAN FD, DoIP, ISO9141, K/L-Line, SAE J1850, J1708, J1939, LIN, and more
Additional Features: LED indicators, internal storage, automatic updates
Power Supply: 8 V to 36 V DC
Protection Rating: IP53
Weight: ~360 g
Key Advantages:
Multi-brand and multi-environment support: CAR, TRUCK, OHW, BIKE, MARINE, AGRI
Wireless or wired operation flexibility
Fully compatible with TEXA IDC5 diagnostic software
Fast communication and real-time data
Ideal for both workshop and mobile diagnostics
