Description
• CE certificate, Protection IP65
• Power supply: 4.8V – 6V, 0.8W
• Angle measuring range: +/- 15°, accuracy +/- 0.1°
• Equipment: USB-Interface and serial RS-232 for data transfer
• Battery charger (12 V / 250 mA)
• Measurements (in mm): L x W x H: 450 x 380 x 120 (with case) app. 130 x 280 x 70
(without case), weight: 3 kg (7 lbs.)
• Packing measurements (in mm): L x W x H: 455 x 400 x 120, weight: 4 kg (9 lbs.)

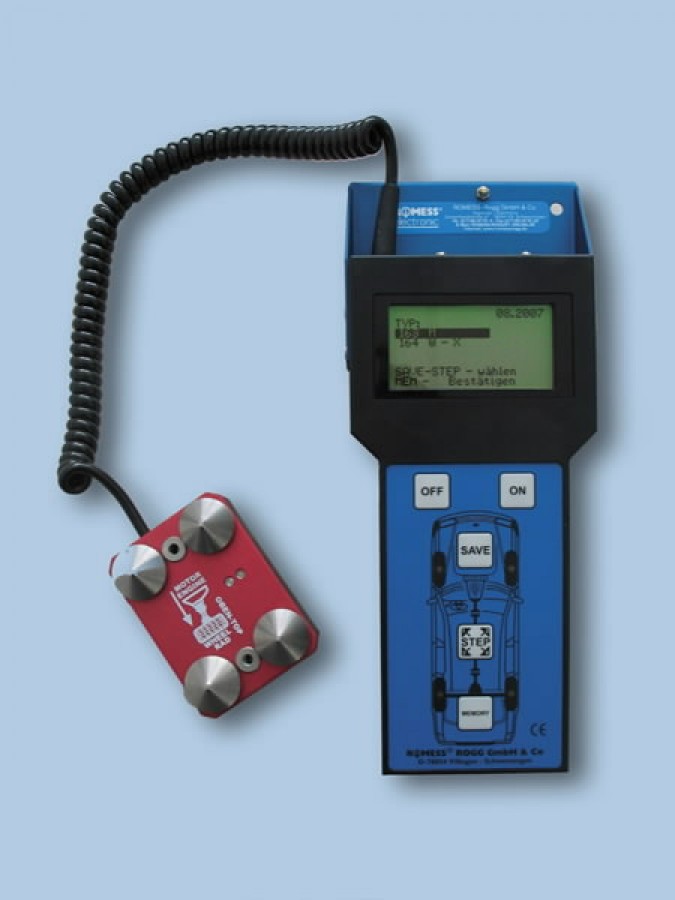

• Scope of delivery: Inclinometer CM 09606 in storage case, adaption plate 09606-50,
4 rechargeable batteries, battery charger and user manual
