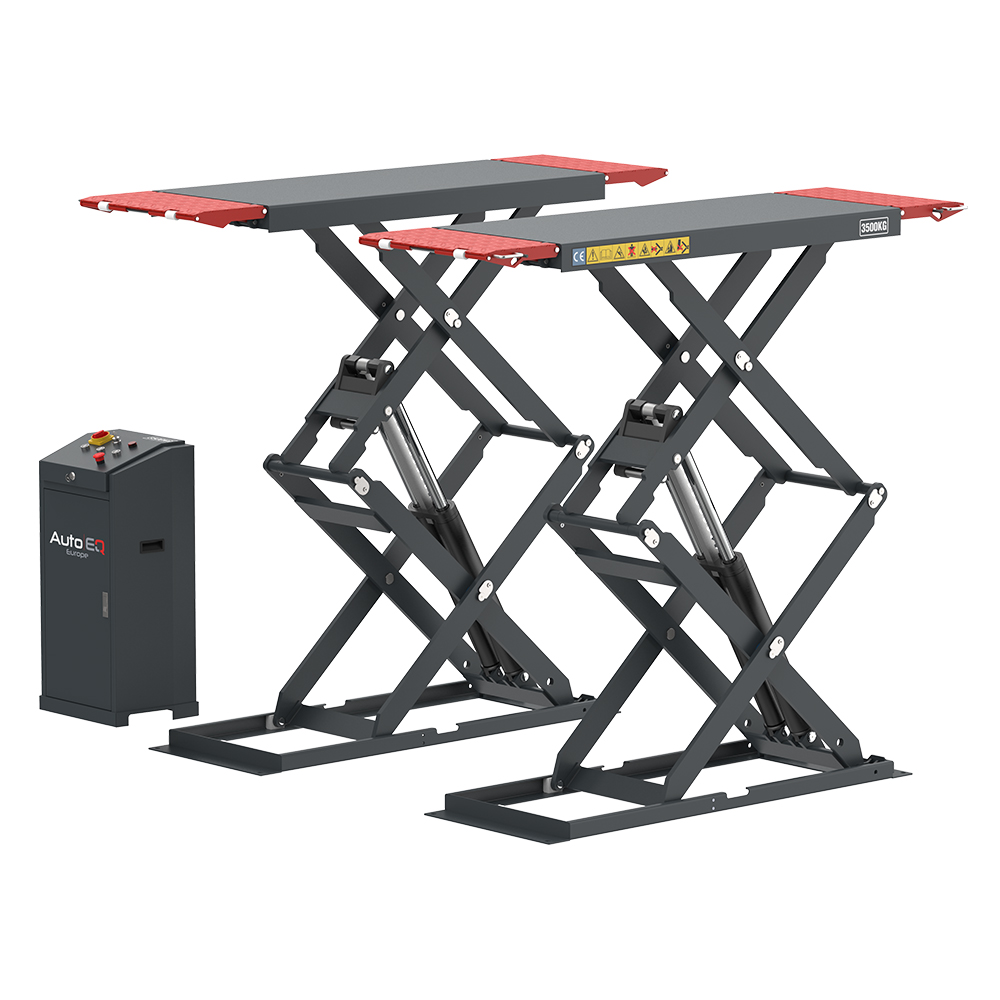

Scissor lift 3,5T (AQL3500A)
Technical specification:
Lifting capacity 3500 Kg
Lifting height: 110 -1900 mm
Platforms length 1495 - 2010 mm
Platforms width 600 mm
Lifting time 55 s
Width between ramps 850 mm
Air supply: 8-10 bar
Tank capacity: 20 L
Motor power 2.2 kw
Power Supply 380 V | 50 - 60 Hz
Weight: 930 kg

Product's description
Rubber pads 50 mm 4 psc.
4 cylinders
Air locking
CE Approved
